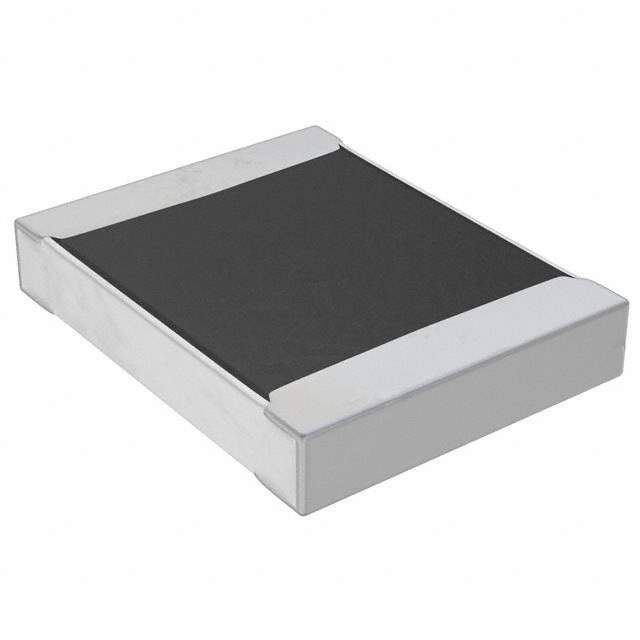

RMCP1210FT15K0 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Stackpole Electronics Inc
Packaging Reel - TR
Resistance 15 kOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number -RMCP1210FT15K0TR,-850-RMCP1210FT15K0CT,RMCP1210FT15K0DKR,738-RMCP1210FT15K0TR,738-RMCP1210FT15K0CT,RMCP1210FT15K0TR-ND,RMCP1210FT15K0CT-ND,RMCP1210FT15K0-ND,RMCP1210FT15K0TR,-850-RMCP1210FT15K0TR,-RMCP1210FT15K0DKR,-RMCP1210FT15K0CT,738-RMCP1210FT15K0DKR,-RMCP1210FT15K0DKR-ND,-RMCP1210FT15K0CT-ND,RMCP1210FT15K0DKR-ND,-RMCP1210FT15K0TR-ND,-850-RMCP1210FT15K0DKR,RMCP1210FT15K0CT
Standard Package 5,000
Win Source Part Number 1326412-RMCP1210FT15K0
Ultra Librarian 3D Model Ultra Librarian RMCP1210FT15K0 CAD Model

Description

The RMCP1210FT15K0 from Stackpole Electronics Inc is a chip resistor - surface mount product that comes in a 1210 (3225 Metric) case/package.

  • Case/Package: 1210 (3225 Metric)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • AEC-Q200 Rated: Yes
  • Power Rating: 0.5W (1/2W)
  • Resistance: 15 kOhms
  • Number of Terminations: 2
  • Standard Package: 5000
  • REACH: Unaffected
  • HTSUS: 8533.21.0030
