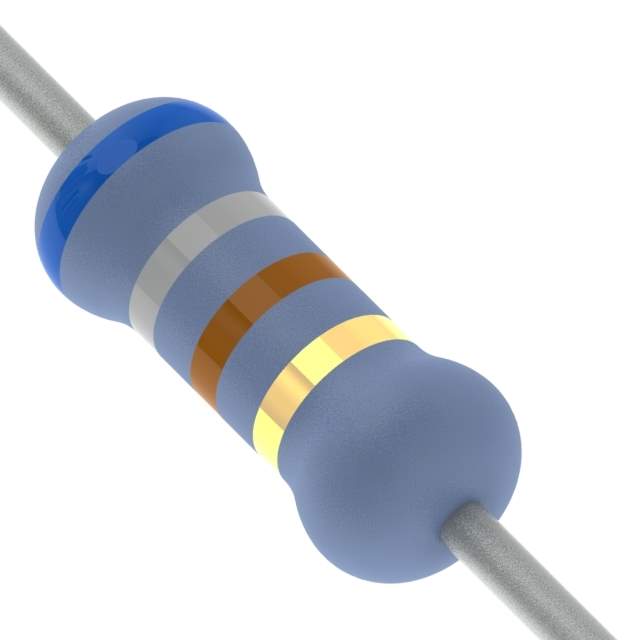

RSF12JT680R Real Image
Same model may have multiple batches, images only for reference.

RSF12JT680R

Part No RSF12JT680R
Manufacturer Stackpole Electronics Inc.
Catalog Through Hole Resistors
Description RES 680 OHM 5% 1/2W AXIAL / 680 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Stackpole Electronics Inc
Series RSF
Package Tape & Reel
Resistance 680 Ohms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Oxide Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.126" Dia x 0.354" L (3.20mm x 9.00mm)
Number of Terminations 2
Standard Package 2,500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1340749-RSF12JT680R
Ultra Librarian 3D Model Ultra Librarian RSF12JT680R CAD Model

Description

The RSF series through-hole resistor is a metal oxide film resistor with a flame retardant coating and safety features from Stackpole Electronics Inc.

  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Resistance: 680 Ohms
  • Power (Watts): 0.5W (1/2W)
  • Package / Case: Axial
  • Size / Dimension: 0.126" Dia x 0.354" L (3.20mm x 9.00mm)
  • Series: RSF
  • Packaging: Tape & Reel (TR)
  • Standard Package: 2,500
  • ECCN: EAR99
