Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Triac Type Logic - Sensitive Gate
Voltage - Off State 700V
Current - On State (It (RMS)) (Max) 6A
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) 45A, 50A
Current - Gate Trigger (Igt) (Max) 10mA
Current - Hold (Ih) (Max) 25mA
Configuration Single
Temperature Range - Operating -30°C to 125°C (TJ)
Mounting Through Hole

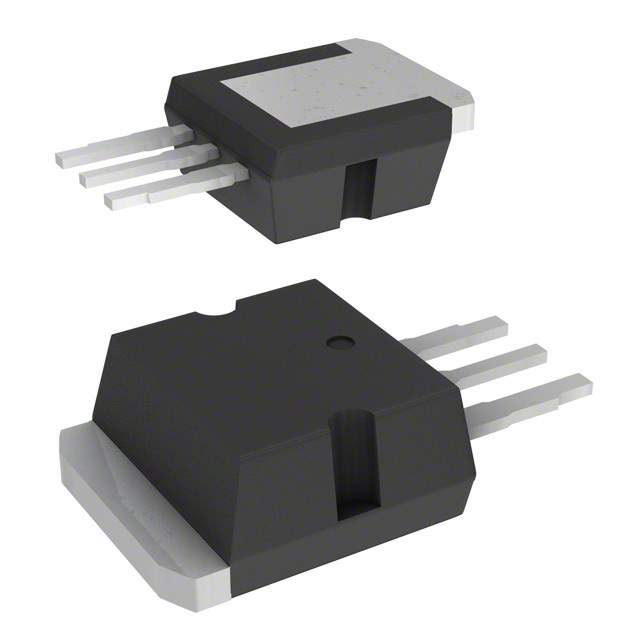

Case / Package I2PAK
Win Source Part Number 1011892-ACST6-7SR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACST6-7SR CAD Model

Description

The ACST6-7SR from STMicroelectronics is a cutting-edge triac device designed to deliver high performance in a wide range of AC power applications. As a member of the ACS™ and ACST power switch family, this component is engineered to handle high current loads with a maximum rating of 6A and is suitable for operation at mains voltages up to 700V. This makes the ACST6-7SR an ideal choice for applications requiring robust and reliable switching capabilities.

Key Features

  • High Blocking Voltage Capability: With a high blocking voltage of up to 700V, the ACST6-7SR can comfortably manage spikes and surges in the AC mains supply, ensuring stable performance and longevity.
  • High Surge Current Capability: This triac is capable of withstanding high surge currents, making it suitable for applications that experience short-term overloads, ensuring reliability and safety.
  • Snubberless Technology: The device incorporates ST's proprietary snubberless technology, which allows for a reduction in the number of external components required, simplifying design and reducing overall costs.
  • High Commutation Performance: The ACST6-7SR is designed for high commutation performance, which allows it to switch off high inductive loads efficiently without the need for additional snubber circuitry.
  • Thermal Resistance: Enhanced thermal resistance characteristics enable the triac to operate reliably over a wide temperature range, making it suitable for various environmental conditions.

Applications

The ACST6-7SR is versatile and can be used in a variety of applications including:

  • Home appliances such as washing machines, dishwashers, and refrigerators
  • Lighting systems including dimmers and switch controllers
  • Motor control circuits, particularly for small motors used in household and office equipment
  • Power tools requiring controlled operation and safety features
  • Heating systems that demand precise temperature regulation

Whether you’re designing for industrial control, home automation, or consumer electronics, the ACST6-7SR triac from STMicroelectronics offers the reliability, efficiency, and high performance required for your power control solutions.
