Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Frequency Range 2.4GHz to 2.54GHz
Impedance - Unbalanced/Balanced 50 / - Ohm
Phase Difference 3°
Insertion Loss (Max) 2.25dB
Return Loss (Min) 10dB
Mounting Surface Mount
Win Source Part Number 1022001-BAL-NRF01D3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name BAL
Introduction Date October 15, 2012
ECCN EAR99
Country of Origin China, France
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian BAL-NRF01D3 CAD Model

Description

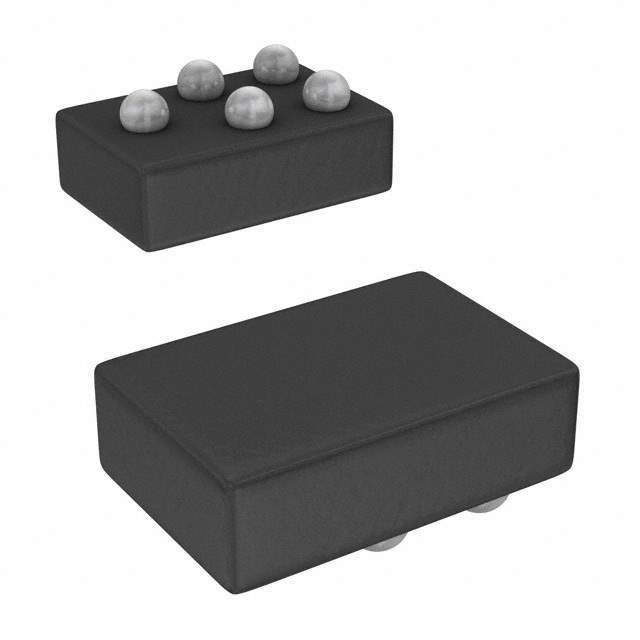

Introducing the BAL-NRF01D3 from STMicroelectronics

The BAL-NRF01D3 is an innovative integrated balun with an integrated harmonic filter that has been meticulously designed for seamless compatibility with Nordic's nRF51 series and nRF52 series of chipsets. This product from STMicroelectronics stands out as a high-performance solution for applications requiring Bluetooth Low Energy (BLE), ANT, and 2.4 GHz proprietary protocols.

Optimized for Efficiency and Performance

The BAL-NRF01D3 integrates matching network and harmonics filter, which simplifies the design process for RF engineers by reducing the number of external components required. This integration not only saves board space but also enhances the overall performance of the system by providing optimized impedance matching, which is crucial for maximizing power transfer and minimizing energy loss.

Robust Design for Diverse Applications

Designed to operate within the wide temperature range of -40°C to 85°C, the BAL-NRF01D3 is suitable for a diverse array of applications. Whether it's for wearable technology, IoT devices, smart home applications, or industrial sensors, this balun ensures reliable performance in various environmental conditions. Its robust design also contributes to its longevity and durability, making it a preferred choice for products that require long-term reliability.

Key Features

  • Frequency Range: The BAL-NRF01D3 is designed for the 2.4 GHz ISM band, ensuring compatibility with a wide range of wireless applications.
  • Low Insertion Loss: The low insertion loss feature of the BAL-NRF01D3 maximizes the efficiency of the RF path, thereby enhancing the range and performance of the wireless communication.
  • Compact Size: With its ultra-miniature footprint (1.7 x 1.3 x 0.9 mm), the BAL-NRF01D3 is perfect for space-constrained applications without compromising on performance.
  • Compliance: It meets the requirements of the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice.

Seamless Integration

STMicroelectronics provides comprehensive technical support, including application notes and reference designs, to ensure smooth integration of the BAL-NRF01D3 into your projects. With its outstanding performance, ease of integration, and support from STMicroelectronics, the BAL-NRF01D3 is an exemplary choice for designers looking to enhance their RF solutions.
