Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 10V
Minimum Breakdown Voltage 12V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 50W
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)

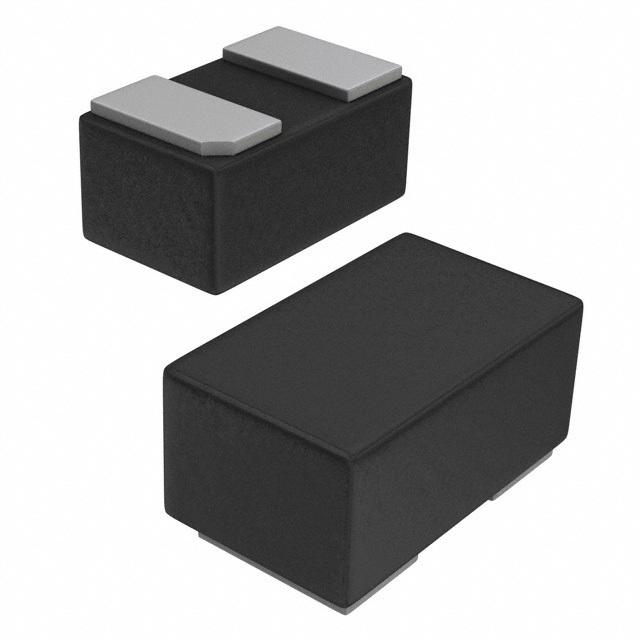

Case / Package SOD-882
Win Source Part Number 124152-ESDALC12-1T2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESDALC12-1T2 CAD Model

Description

ESDALC12-1T2 - Bidirectional Single Line TVS Diode

The ESDALC12-1T2 is a cutting-edge transient voltage suppression (TVS) diode designed by STMicroelectronics, a global leader in semiconductor solutions. This device is specifically engineered to protect sensitive electronic equipment from electrostatic discharges (ESD) and other voltage-induced transient events. With its bidirectional clamping characteristics and single-line protection, it is an ideal choice for safeguarding high-speed data lines and other critical circuits against electrical threats.

Key Features

  • Low Clamping Voltage: The ESDALC12-1T2 offers a very low clamping voltage, ensuring that any transient overvoltages are kept to a minimum, thus providing superior protection for sensitive components.
  • High Surge Capability: With its ability to handle high surge currents, this TVS diode is capable of absorbing significant transient energy, which makes it suitable for applications prone to high ESD events.
  • Fast Response Time: The device reacts almost instantaneously to transient events, ensuring that the protected circuitry is quickly shielded from potentially damaging voltage spikes.
  • Low Leakage Current: It exhibits extremely low leakage current in its standby state, which helps in maintaining the energy efficiency of the overall system.
  • Small Package Size: The ESDALC12-1T2 comes in a compact SOD-882 package, making it an excellent choice for space-constrained applications.

Applications

The versatility of the ESDALC12-1T2 allows it to be used across a broad range of applications. It is particularly well-suited for:

  • USB 2.0 and 3.0 interfaces
  • HDMI and other high-speed data lines
  • Mobile phones, tablets, and other portable devices
  • Microcontroller input/output protection
  • Power supply protection

Reliability and Compliance

STMicroelectronics ensures that the ESDALC12-1T2 meets the highest standards of quality and reliability. It complies with the IEC 61000-4-2 standard, which defines the ESD immunity requirements for electronic equipment. Additionally, this component is RoHS compliant and free from hazardous substances, reflecting STMicroelectronics' commitment to environmental sustainability.

Overall, the ESDALC12-1T2 from STMicroelectronics represents a robust and reliable solution for protecting sensitive electronics from the dangers of ESD and other transient voltage events.
