Products specifications

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Type Power Management
Function Motor Controller/Driver
Embedded Yes, MCU, 32-Bit
Utilized IC / Part STSPIN32F0601
Primary Attributes Motors (PMSM)
Supplied Contents Board(s)
Secondary Attributes Graphical User Interface (GUI)
Base Product Number EVSPIN32
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8543.70.9860
Win Source Part Number 1341589-EVSPIN32F06Q1S3
Ultra Librarian 3D Model Ultra Librarian EVSPIN32F06Q1S3 CAD Model

Description

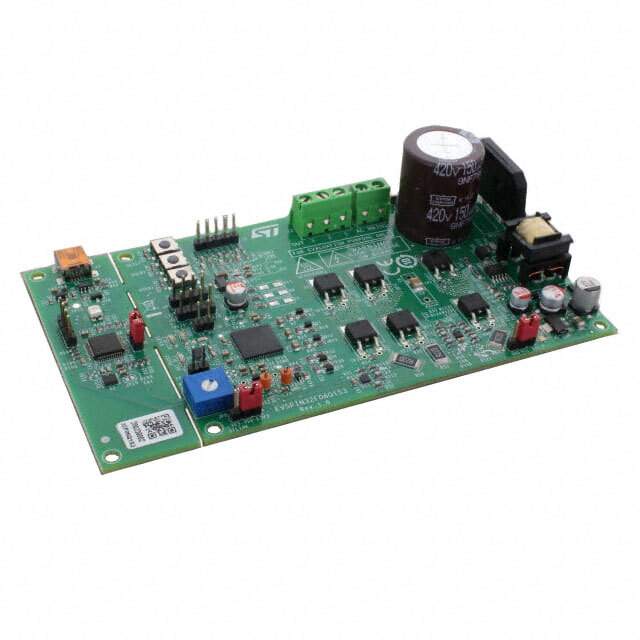

Introducing the EVSPIN32F06Q1S3 from STMicroelectronics

The EVSPIN32F06Q1S3 is a state-of-the-art motor control module designed and manufactured by STMicroelectronics. This innovative product is part of the SPIN32F0 family, which is known for its high-performance and compact motor control systems. The module is specifically tailored for applications that demand precise and efficient control of brushless DC (BLDC) motors.

Key Features

  • Integrated Design: The EVSPIN32F06Q1S3 incorporates an advanced 32-bit microcontroller (MCU) based on the ARM Cortex-M0 core, along with a gate driver for six-step commutation, which simplifies the design and reduces the footprint of the motor control applications.
  • Power Efficiency: With a wide input voltage range from 7V to 45V, the module ensures efficient operation across various power levels, making it suitable for a diverse range of BLDC motor applications.
  • Advanced Protection Features: The device is equipped with numerous protection features, including overcurrent, overvoltage, undervoltage lockout, and thermal shutdown, to ensure the safety and reliability of the motor control system.
  • High Integration: The module includes a 250 mA dual LDO regulator, a bootstrap diode, and all necessary filtering and protection components, which significantly reduce the external component count.
  • Configurability: Users can easily configure the EVSPIN32F06Q1S3 for their specific application needs thanks to its user-friendly interface and support for multiple communication protocols, including UART, PWM, and analog inputs.

Applications

The EVSPIN32F06Q1S3 is versatile and can be used in a wide array of applications, such as:

  • Home appliances (fans, refrigerators, washing machines)
  • Industrial automation (conveyor belts, robotic arms)
  • Automotive applications (pumps, blowers)
  • Drones and RC hobbyist projects

STMicroelectronics' commitment to innovation is evident in the EVSPIN32F06Q1S3 module, offering designers a high-performance, compact, and easy-to-use solution for their motor control needs. Whether for consumer, industrial, or automotive applications, this module delivers the efficiency, reliability, and precision required for today's advanced BLDC motor systems.
