Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6V
Power Dissipation - Pd 35W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 1.1pF @ 1MHz
Mounting SMD (SMT)
Case / Package 10-FlipChip
Win Source Part Number 016911-HDMIULC6-4F3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HDMIULC6-4F3 CAD Model

Description

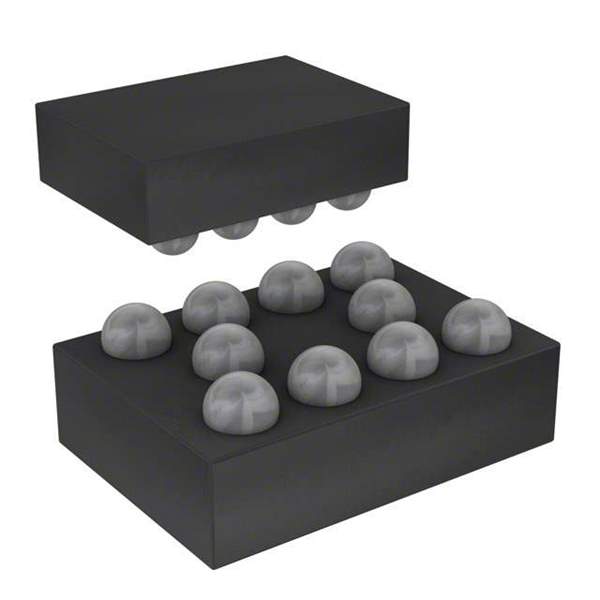

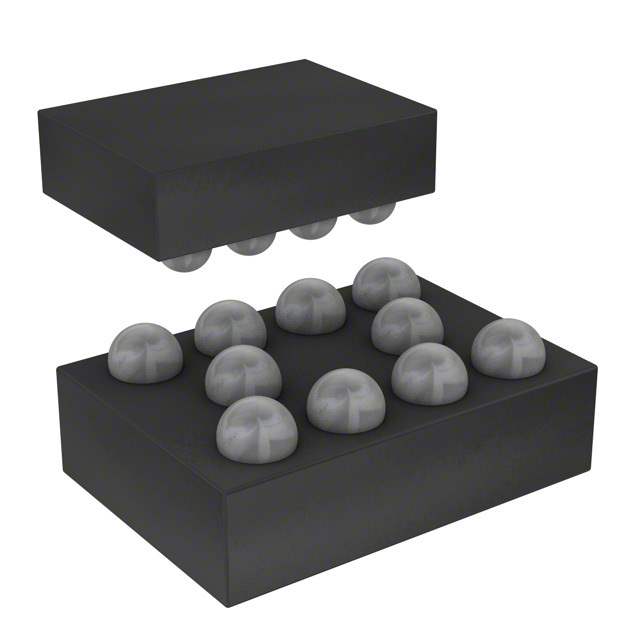

STMicroelectronics HDMIULC6-4F3 HDMI ESD Protection

The HDMIULC6-4F3 is a high-quality ESD (Electrostatic Discharge) protection device from STMicroelectronics, specifically designed to safeguard high-speed interfaces such as HDMI (High-Definition Multimedia Interface), DVI (Digital Visual Interface), and DisplayPort. This robust component is a must-have for any application that requires reliable protection against the transient surges that are common in today's high-speed signal lines.

Featuring a low line capacitance, the HDMIULC6-4F3 ensures signal integrity is maintained, making it ideal for applications that demand high-definition video and high-speed data transmission. Its ultra-low clamping voltage effectively shields sensitive circuitry from ESD strikes, thereby preventing any potential damage to the connected devices.

Constructed with STMicroelectronics' advanced process technology, the HDMIULC6-4F3 comes in a compact QFN-6 package, which not only saves valuable board space but also ensures a minimal footprint on your design. The package is lead-free and complies with RoHS standards, reflecting STMicroelectronics' commitment to environmental sustainability.

Key features of the HDMIULC6-4F3 include:

  • Low line capacitance, suitable for high-speed data lines
  • Protection for four HDMI lines
  • ESD protection up to 8 kV (contact discharge) as per IEC 61000-4-2 standard
  • Low clamping voltage for better protection efficiency
  • Compliance with HDMI 1.4, HDMI 2.0, and HDMI 2.1 standards
  • Large bandwidth to pass high-speed differential signals without distortion

Applications for the HDMIULC6-4F3 are vast and include consumer electronics such as TVs, set-top boxes, and gaming consoles, as well as computer peripherals, mobile devices, and digital signage. Its ability to provide reliable ESD protection while maintaining signal integrity makes it an essential component in any modern high-speed interface design.

Integrating the HDMIULC6-4F3 into your design ensures that your products are not only protected against the transients of today but are also prepared for the evolving standards of tomorrow's multimedia interfaces.
