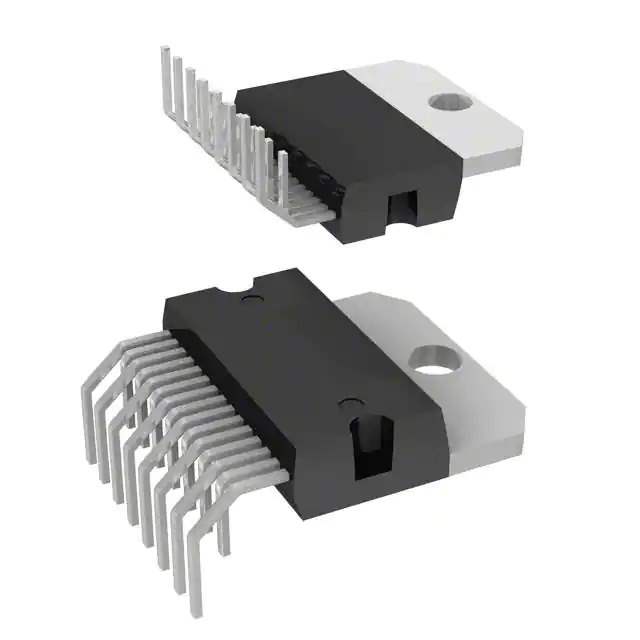

Product L292 Overview
The L292 from STMicroelectronics is a robust and versatile dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It is part of the L29x series that are known for their reliability and efficiency in controlling inductive loads in a variety of applications.
Key Features
- Operating Voltage: The L292 is capable of operating at a supply voltage range from 12V to 48V, making it suitable for a wide range of industrial applications.
- Output Current: It can deliver up to 2A per channel, providing sufficient power for most medium-power applications.
- Thermal Protection: The device includes thermal shutdown circuitry that protects it from overheating, which enhances its durability and reliability.
- Cross-Conduction Protection: The L292 features logic to prevent cross-conduction, ensuring that the power dissipation within the device is minimized.
Applications
The L292 is suitable for a diverse range of applications due to its high driving capability and protective features. Typical applications include:
- Factory automation systems
- Robotics
- Control of various motors in consumer and automotive applications
Technical Specifications
Parameter
Value
Supply Voltage (V<sub>s)
12V to 48V
Output Current (I<sub>OUT)
Up to 2A
Thermal Shutdown
Yes
Input Logic Levels
TTL and CMOS compatible
Quality and Reliability
STMicroelectronics is committed to delivering high-quality products. The L292 is manufactured in state-of-the-art facilities, ensuring that each unit meets rigorous quality control standards. The device is designed to perform reliably in harsh environments, which is a testament to its excellent build quality and the robustness of its design.
