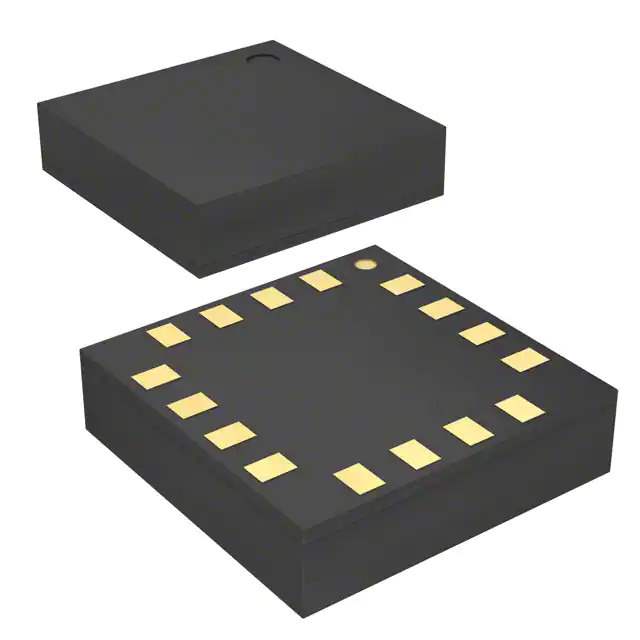

The L3GD20 is a low-power three-axis angular rate sensor from STMicroelectronics, offering high performance and reliability for motion detection applications. This MEMS (Micro-Electro-Mechanical Systems) gyroscope is designed to measure angular rates and provide data with high precision and accuracy, making it an ideal choice for enhancing user experience in various electronic devices.

Key Features:

• Three-Axis Angular Rate Sensor: The L3GD20 can simultaneously measure angular rates along the pitch, roll, and yaw axes, which is crucial for the accurate detection of rotational movements.
• Wide Range of Full Scales: It offers multiple full-scale ranges (±250/±500/±2000 dps), allowing users to select the most suitable range for their application, ensuring optimal performance.
• Embedded Features: This sensor includes several embedded features such as a FIFO (First In First Out) buffer, high-pass filters, and an interrupt generator, which can be used for motion detection, click/double-click recognition, and more.
• High Stability Over Temperature: The L3GD20 maintains consistent performance across a wide temperature range, ensuring reliable operation in various environments.
• Low Power Consumption: Designed for power-sensitive applications, it operates with reduced power consumption, extending battery life in portable devices.

Applications:

The L3GD20 is versatile and can be integrated into a variety of applications, such as:

• Gaming and virtual reality devices
• GPS navigation systems
• Industrial and robotics applications
• Stabilization systems for cameras and drones

Technical Specifications:

• Supply Voltage: 2.4V to 3.6V
• Communication Interfaces: I2C/SPI digital output interface
• Sensitivity: 8.75/17.50/70 mdps/digit
• Temperature Range: -40°C to +85°C

With its advanced features and robust performance, the L3GD20 from STMicroelectronics is a top choice for developers looking to incorporate precise angular rate sensing into their next project.
