Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2, 1/8, 1/16, 1/32
Applications Automotive
Output Current 1.3A
Supply Voltage - Operating 3 V to 5.3 V
Voltage - Load 7 V to 20 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)

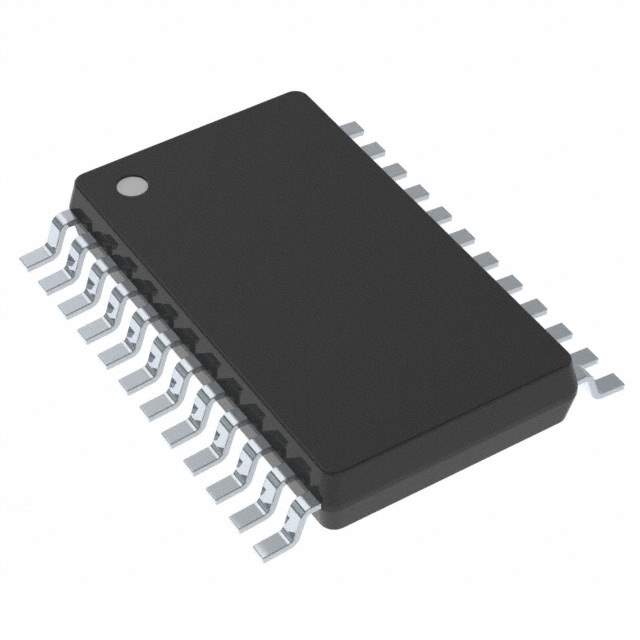

Case / Package PowerSSO-24 Exposed Bottom Pad
Win Source Part Number 018434-L9942XP1TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian L9942XP1TR CAD Model

Description

The L9942XP1TR from STMicroelectronics is a sophisticated motor driver designed to cater to a wide range of automotive applications. It is particularly engineered to drive bipolar stepper motors, allowing for precise control of motor phases with high efficiency and reliability. This integrated circuit (IC) is part of the expansive portfolio of automotive-grade products offered by STMicroelectronics, a leader in semiconductor solutions.

Key Features

  • Operating Voltage: The device operates over a broad voltage range, making it suitable for various automotive environments.
  • Output Current: It can deliver up to 1.5A of output current per phase, providing the necessary power for a range of stepper motor applications.
  • Protection Features: The L9942XP1TR comes with a suite of protection features including over-temperature, under-voltage, and over-current protection, ensuring the longevity and safe operation of the motor and driver.
  • Diagnostic Functions: Advanced diagnostic functions are integrated into the IC for fault detection, which is critical for maintaining the performance and safety of automotive systems.
  • Serial Interface: A serial peripheral interface (SPI) is available for configuration and diagnostics, providing ease of integration and real-time monitoring capabilities.
  • Package: The device is packaged in a PowerSSO-36, which is designed for optimal heat dissipation and space-saving on the PCB.

Applications

The L9942XP1TR is ideal for various automotive applications, including but not limited to:

  • Engine and transmission control
  • Adaptive headlight positioning
  • HVAC valve control
  • Fuel injection systems

With its robust design and comprehensive feature set, the L9942XP1TR motor driver is a perfect choice for automotive engineers seeking a reliable and high-performance solution for their stepper motor control needs.
