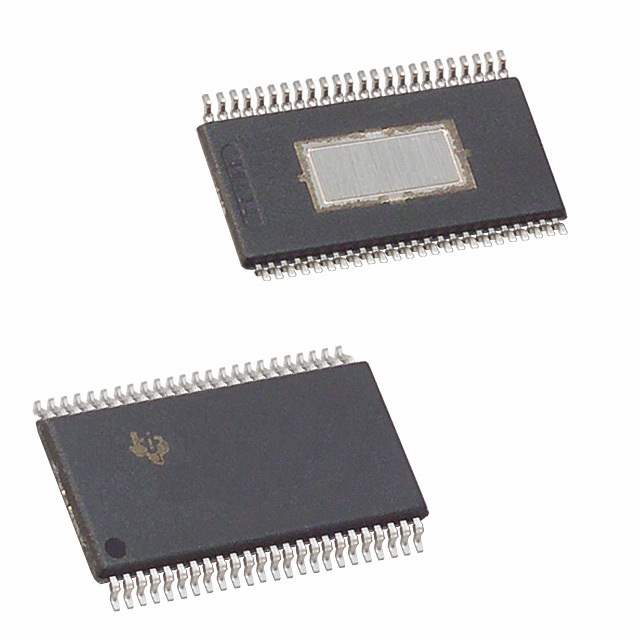

DRV8821DCAR Real Image DRV8821DCAR Real Image
Same model may have multiple batches, images only for reference.
DRV8821DCAR Real Image DRV8821DCAR Real Image
DRV8821DCAR Real Image DRV8821DCAR Real Image
Same model may have multiple batches, images only for reference.

DRV8821DCAR

Part No DRV8821DCAR
Manufacturer Texas Instruments
Catalog PMIC - Motor Drivers, Controllers
Description H-Bridge Motor Driver 48-Pin HTSSOP EP T/R / IC MOTOR DRIVER PAR 48HTSSOP
Datasheet
DRV8821DCAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Step Resolution 1, 1/2, 1/4, 1/8
Applications General Purpose
Output Current 1.5A
Supply Voltage - Operating 8 V to 32 V
Voltage - Load 8 V to 32 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 48-HTSSOP
Win Source Part Number 014635-DRV8821DCAR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DRV8821
Introduction Date September 01, 2009
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian DRV8821DCAR CAD Model

Description

DRV8821DCAR Motor Driver IC

The DRV8821DCAR is a versatile motor driver IC offering dual full-bridge outputs. It is equipped with comprehensive protection features and optimized for a broad range of voltage conditions, making it suitable for a variety of applications.

Features and Benefits:

  • Dual full-bridge outputs for driving two DC motors
  • Wide operating supply voltage range
  • Protections for thermal shutdown and under-voltage
  • Current limiting and over-current protection

Applications:

  • Automated guided vehicles
  • Toys and hobbyist electronics
  • ATM machines
  • Home automation devices
