The LD39020TPU185R from STMicroelectronics is a high-performance, low-dropout (LDO) voltage regulator designed to deliver a stable and precise output voltage. This compact and efficient power management solution is well-suited for a wide range of applications, including portable devices, microcontrollers, and other digital electronics that require a reliable power supply.

Key Features

• Output Voltage: This LDO provides a fixed output voltage of 1.85V, which is ideal for powering sensitive electronic components that require a specific operating voltage.
• High Accuracy: The LD39020TPU185R offers excellent load and line regulation, ensuring that the output voltage remains consistent under varying conditions.
• Low Dropout: The low dropout voltage of this regulator allows it to continue providing a stable output even when the input voltage is very close to the output voltage, making it highly efficient in battery-powered applications.
• Current Capability: It can deliver up to 200 mA of continuous output current, sufficient for a wide range of low-power devices.
• Thermal Protection: The device includes thermal shutdown protection, which safeguards the regulator and the system from damage due to overheating.
• Stability: The LD39020TPU185R is designed for stability with low equivalent series resistance (ESR) ceramic capacitors, ensuring reliable performance over time.

Package and Durability

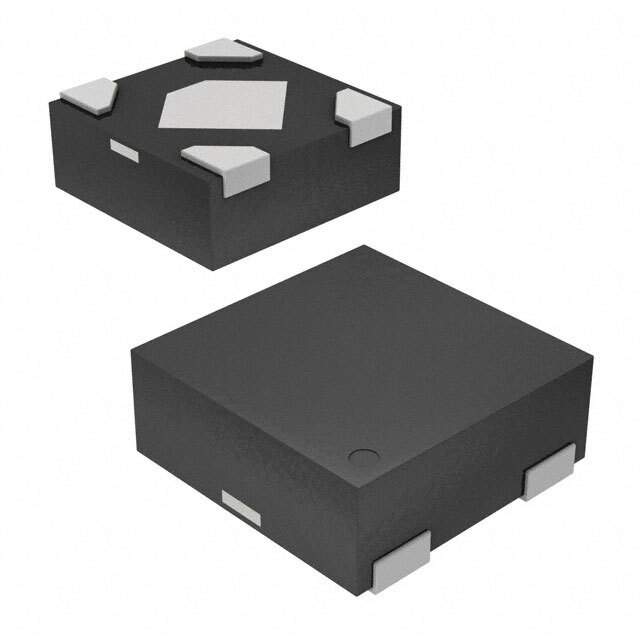

This voltage regulator comes in a compact DFN6 (1.2 x 1.3) package, which is space-efficient and suitable for high-density circuit boards. The LD39020TPU185R is also characterized by its robustness and longevity, with built-in features that protect against over-current and short-circuit conditions.

Applications

The LD39020TPU185R is versatile and can be used in various applications, including:

• Mobile phones and personal media players
• Portable gaming devices
• GPS receivers
• Healthcare and medical devices
• Smart sensors and IoT devices

With its combination of performance, efficiency, and compact size, the LD39020TPU185R from STMicroelectronics is an excellent choice for designers looking to optimize their power management solutions.
