Overview of the LD39030DTPU28R

The LD39030DTPU28R is a high-performance, low-dropout voltage regulator (LDO) designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This regulator is specifically engineered to deliver a stable and precise voltage supply, making it an ideal choice for sensitive electronic applications where voltage stability is critical.

Key Features

• Output Voltage: The device provides a fixed output voltage of 2.8V, which is suitable for powering a wide range of low-voltage circuits and components.
• High Accuracy: The LD39030DTPU28R offers excellent load and line regulation, ensuring a consistent output even under varying input voltage and load conditions.
• Low Dropout: With its low dropout performance, this LDO can maintain regulation even when the input voltage is very close to the output voltage, enhancing efficiency and battery life in portable applications.
• Current Capacity: It has the capability to deliver up to 300mA of continuous output current, making it suitable for a variety of moderate power requirements.
• Thermal Protection: The device includes built-in thermal shutdown protection to prevent damage from overheating, ensuring reliable operation over a wide range of temperatures.

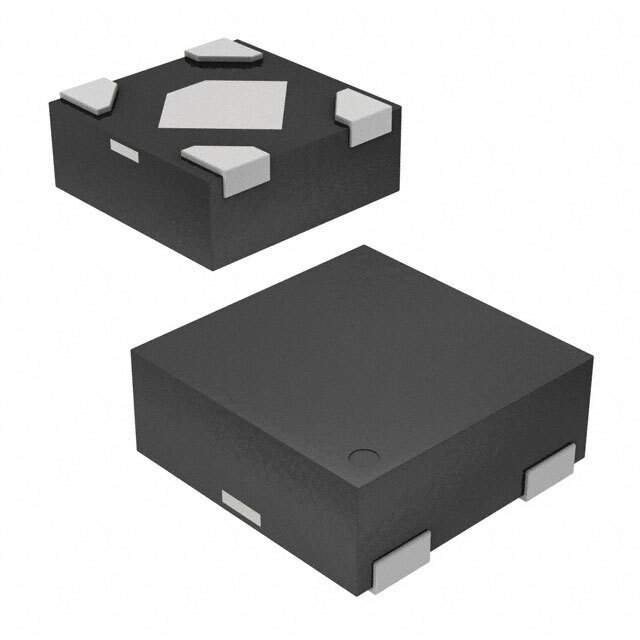

• Package: The LD39030DTPU28R comes in a compact DFN6 (1.2 x 1.3mm) package, which is ideal for space-constrained applications.

Applications

The LD39030DTPU28R is versatile and can be used in various electronic devices, including:

• Portable and battery-powered devices
• Microcontroller power supply
• Wireless communication systems
• Power management for IoT devices
• Consumer electronics such as cameras and personal media players

Conclusion

With its precise voltage regulation, low dropout performance, and robust protection features, the LD39030DTPU28R from STMicroelectronics is a reliable and efficient solution for a wide range of power supply requirements. Its small package size also makes it an excellent choice for designs where board space is at a premium. Whether for industrial, commercial, or personal electronics, the LD39030DTPU28R LDO regulator delivers the performance and reliability expected from a leader in semiconductor solutions.
