The LD59100PUR from STMicroelectronics is a high-performance, low-dropout voltage regulator specially designed for applications requiring a highly stable and clean power supply. This efficient device is capable of delivering a continuous output current of up to 1 A with an input voltage range of 1.5 V to 5.5 V, making it a versatile choice for a wide range of electronic circuits and systems.

Key Features

• High Output Current: Capable of providing up to 1 A of continuous output current.
• Low-Dropout Voltage: Ensures efficient operation even with very low input-to-output voltage differentials.
• Wide Input Voltage Range: Operates with input voltages from 1.5 V to 5.5 V, accommodating various power sources.
• Stable Output: Delivers a stable and regulated output voltage, critical for sensitive electronic components.
• Adjustable Output: Users can set the output voltage from 0.8 V to VIN, with external resistors, to match specific requirements.
• Thermal Protection: Integrated thermal shutdown feature protects the device from overheating.
• Current Limiting: Built-in current limit function helps prevent damage from overcurrent conditions.
• Low Quiescent Current: Ideal for battery-powered applications due to its low power consumption when in standby.

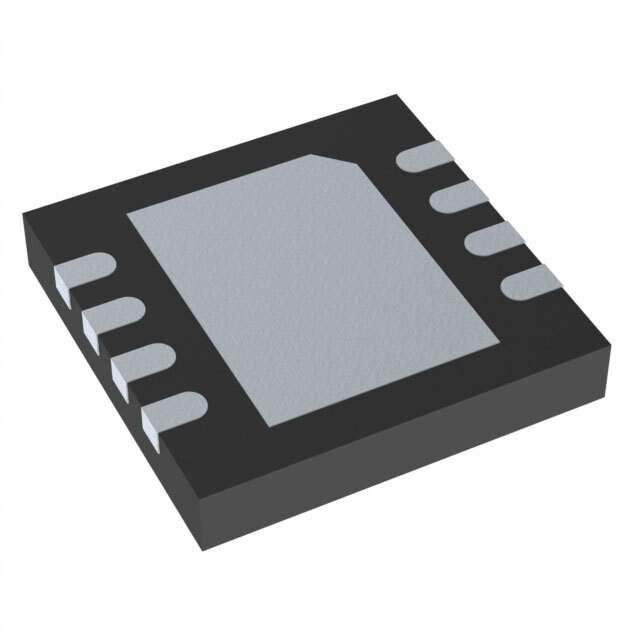

• Package: Available in a compact DFN6 (3x3 mm) package, suitable for space-constrained applications.

Applications

The LD59100PUR is a versatile component that can be used in a variety of applications, including:

• Portable and battery-powered devices
• Microcontroller power supply
• Wireless communication systems
• Power management for IoT devices
• Consumer electronics
• Automotive applications

With its precision output voltage and high reliability, the LD59100PUR is an excellent choice for designers looking to enhance the performance and stability of their power supply solutions. Its robust feature set ensures that it can meet the rigorous demands of modern electronic devices.

For detailed specifications, application notes, and additional resources, please visit the STMicroelectronics website or contact their support team.
