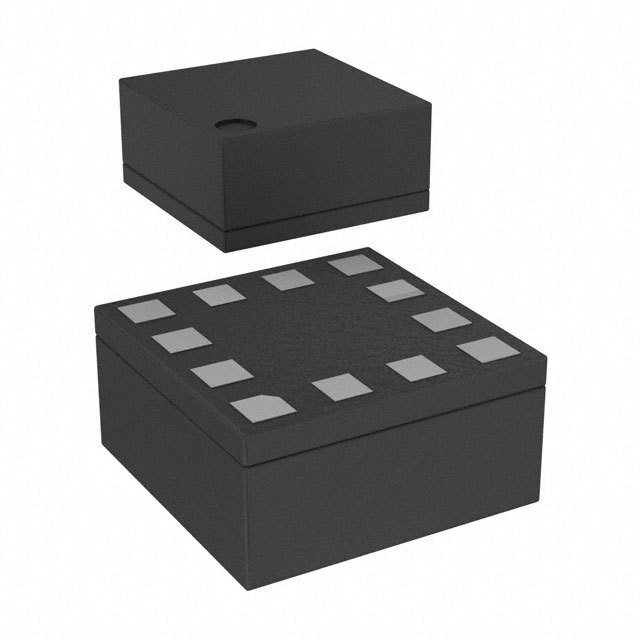

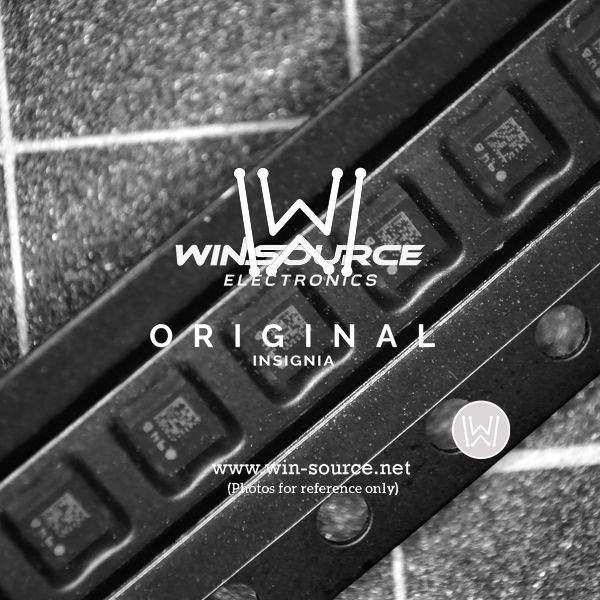

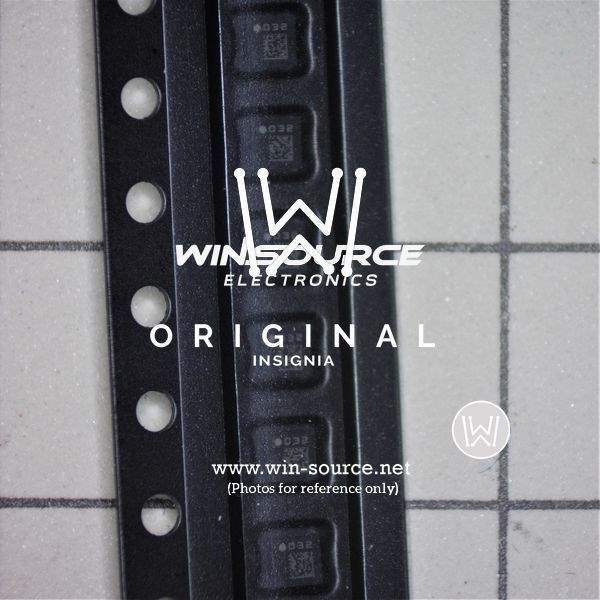

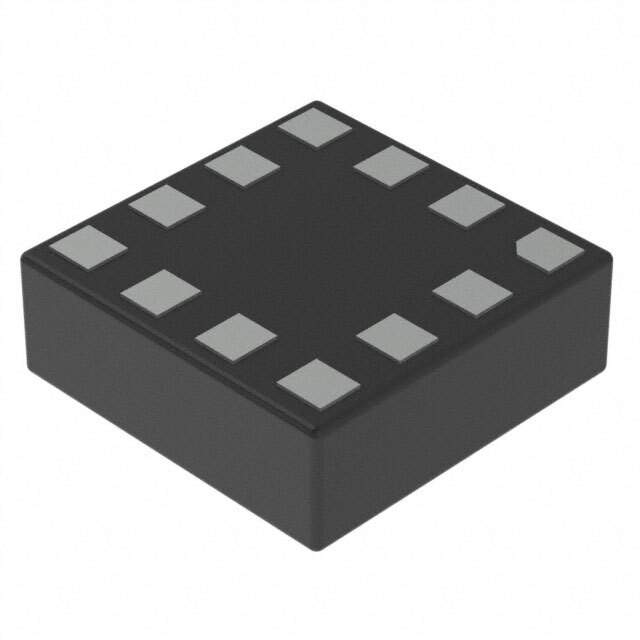

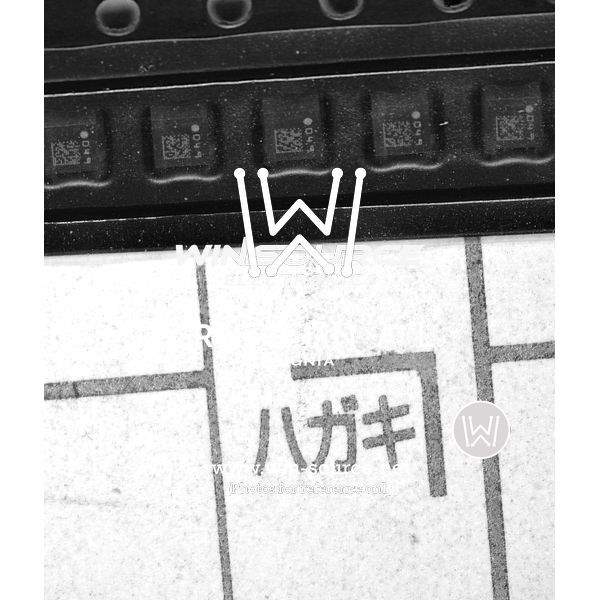

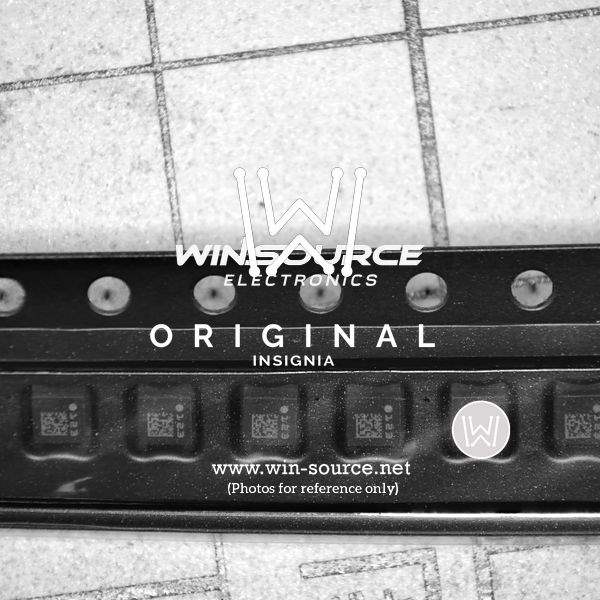

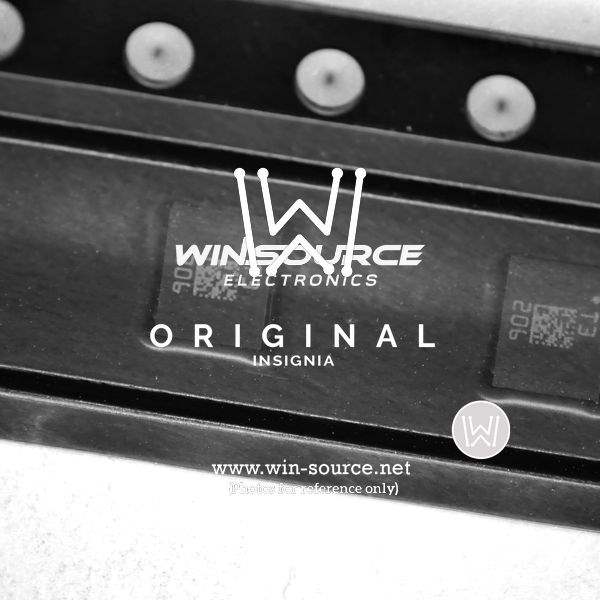

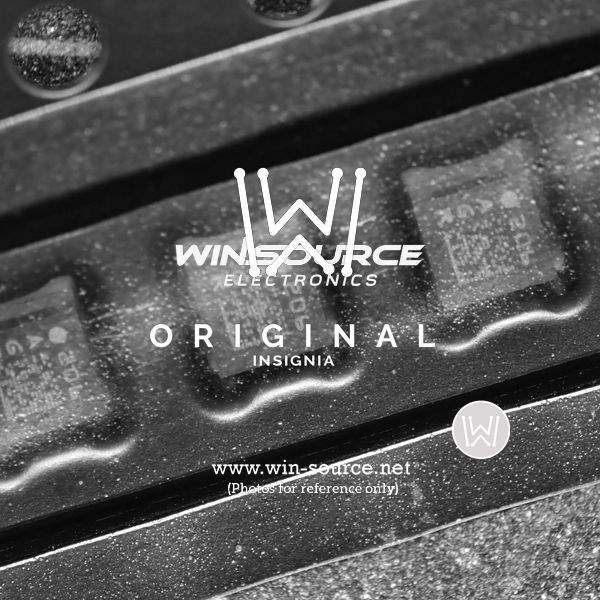

LIS2DH12TR

Part No LIS2DH12TR
Manufacturer STMicroelectronics
Catalog Motion Sensors - Accelerometers
Description ACCEL 2-16G I2C/SPI 12LGA
Datasheet
Sample
Rohs State Need to verify
ECAD Module ECAD

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $0.238 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
140+
$0.3680
$51.520
335+
$0.3020
$101.170
515+
$0.2920
$150.380
710+
$0.2830
$200.930
915+
$0.2740
$250.710
1,225+
$0.2450
$300.125
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 1,333,333 pieces
MOQ: 140 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate

*

Products specifications

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 1000 (±2g) to 83 (±16g)
Bandwidth 0.5Hz to 672Hz
Output Type I2C, SPI
Supply Voltage - Operating 1.71 V to 3.6 V
Features Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 12-LGA (2x2)
Win Source Part Number 018605-LIS2DH12TR
Family Name LIS2DH12
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Fake Threat In the Open Market 45 pct.
Supply and Demand Status Sufficient
Alternative Parts
(Cross-Reference)
ADXL316WBCSZ-RL7; SCA3100-D04;  SCA3100-D07;

Description

LIS2DH12TR - Ultra-low-power High-performance 3-Axis "femto" Accelerometer

The LIS2DH12TR is a state-of-the-art 3-axis accelerometer from STMicroelectronics, designed to deliver high performance in a wide range of applications while maintaining ultra-low power consumption. This MEMS sensor, belonging to the "femto" family, is particularly suitable for mobile applications and battery-operated devices due to its exceptional power-saving capabilities and small form factor.

With a selectable full-scale range of ±2g/±4g/±8g/±16g, the LIS2DH12TR can measure accelerations with output data rates from 1 Hz to 5.3 kHz. This flexibility makes it perfect for implementing features such as motion detection, free-fall detection, and high-resolution measurements in consumer electronics, industrial, and healthcare applications.

The device features a high-resolution mode that provides 12-bit data output, ensuring precise measurements for advanced applications. Additionally, the LIS2DH12TR includes several advanced features such as 4D/6D orientation detection, which allows the device to determine its spatial position, and a temperature sensor for monitoring and compensating for temperature variations.

One of the key advantages of the LIS2DH12TR is its embedded FIFO (First In, First Out) buffer that allows the storage of data, thereby reducing the intervention of the host processor and contributing to further power savings. This is especially useful in applications where power efficiency is critical, such as wearable devices and IoT sensors.

Engineered for robustness, the LIS2DH12TR operates over a wide temperature range and comes in a small, thin plastic land grid array package (LGA) that is only 2.0 x 2.0 x 1.0 mm in size, making it an ideal choice for space-constrained designs. The device is also designed to comply with environmental regulations, being both RoHS and Green compliant.

With its combination of low power operation, high performance, and advanced features, the LIS2DH12TR from STMicroelectronics is a versatile and reliable solution for adding motion sensing to any project.
