Products specifications

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Type Analog
Axis X, Y, Z
Acceleration Range ±3.5g
Sensitivity (mV/g) 300
Bandwidth 2kHz
Output Type Analog Voltage
Supply Voltage - Operating 2.7 V to 3.3 V
Features Adjustable Bandwidth
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

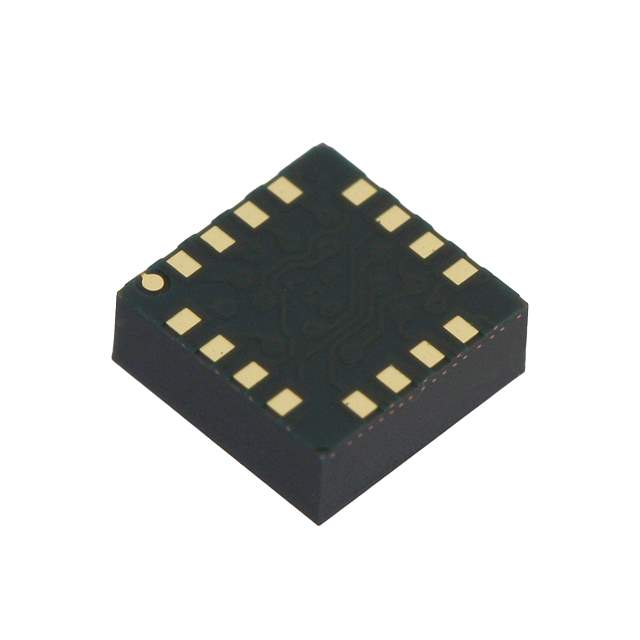

Case / Package 16-LGA (4x4)
Win Source Part Number 070978-LIS344ALTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LIS344ALTR CAD Model

Description

The LIS344ALTR is a high-precision, low-power, three-axis linear accelerometer designed by STMicroelectronics to provide exceptional performance in a wide range of applications. This compact sensor is part of STMicroelectronics' extensive portfolio of motion sensors, which are renowned for their reliability and innovative technology.

Key Features

  • Wide Operating Range: The LIS344ALTR operates on a 2.16V to 3.6V supply voltage range, making it suitable for battery-powered devices.
  • High Sensitivity: It offers selectable full scales of ±2g/±6g and is capable of detecting even the slightest movements with high precision.
  • Low Power Consumption: This accelerometer is designed for power-sensitive applications, with low power modes that help prolong battery life in portable devices.
  • Output Data Rates: It provides a variety of output data rates, allowing users to choose the optimal rate for their application.
  • Embedded Features: The device includes several embedded features such as a high-pass filter, free-fall detection, and a temperature sensor, enhancing its functionality.

Applications

The LIS344ALTR is versatile and can be used in various applications, including:

  • Mobile phones and portable devices for orientation detection and step counting
  • Gaming controllers for motion control and user interface navigation
  • Anti-theft systems and free-fall detection for data protection
  • Industrial applications requiring vibration monitoring and analysis

Package and Integration

This accelerometer is provided in a small, lead-free, plastic land grid array package (LGA) that is designed for optimal integration into tight spaces. The LIS344ALTR's small footprint and low profile make it an excellent choice for space-constrained applications without compromising on performance.

Conclusion

With its robust feature set, the LIS344ALTR from STMicroelectronics is an ideal solution for designers looking to incorporate motion sensing capabilities into their projects. It offers the perfect balance of power efficiency, sensitivity, and advanced features, all within a compact package suitable for a wide array of applications.
