The LNBH23PPR/1B from STMicroelectronics is an advanced monolithic voltage regulator specifically designed for driving the local oscillator of Low Noise Block (LNB) downconverters in digital satellite receiver systems. It is part of the LNBH23 series, which is known for its high performance and reliability in satellite broadcast receiver applications.

Key Features

• Integrated Step-Up Converter: The device includes an efficient step-up DC-DC converter, which provides a stable and adjustable supply voltage for the LNB.
• DiSEqC 2.x Compliant: It complies with the latest DiSEqC 2.x communication protocol, allowing for bi-directional communication between the satellite receiver and the LNB.
• Low Power Consumption: The LNBH23PPR/1B is designed for low power operation to minimize energy consumption, making it an environmentally friendly choice for satellite TV systems.
• Overcurrent and Overtemperature Protection: It includes built-in protection features to safeguard the LNB against potential damage from overcurrent and overheating conditions.
• I²C Interface: The integrated I²C interface enables easy control and monitoring of the LNB through a microcontroller.

Applications

The LNBH23PPR/1B is ideal for a range of satellite receiver applications, including:

• Direct Broadcast Satellite (DBS) systems
• Set-top boxes with satellite reception
• Home satellite TV systems
• Professional satellite broadcast installations

Product Specifications

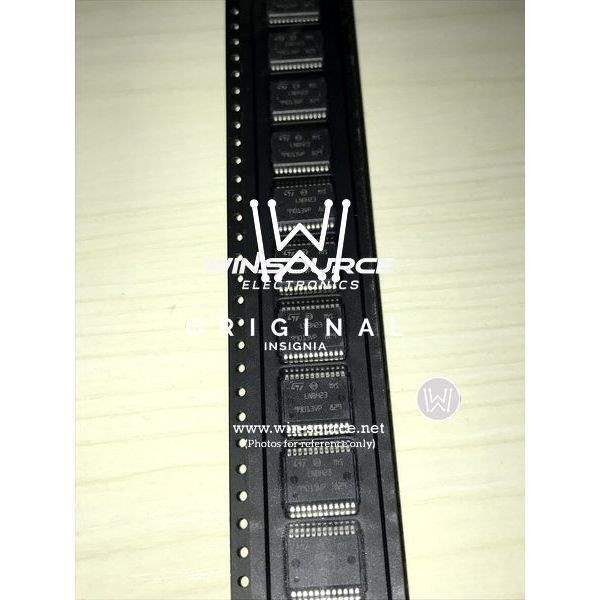

The LNBH23PPR/1B is offered in a PowerSSO-24 package, providing a compact solution that is easy to integrate into satellite receiver systems. It operates over a wide temperature range, ensuring consistent performance even in extreme conditions. The device also features a high level of integration, which reduces the external component count and simplifies the overall design process for system engineers.

With its combination of advanced features, the LNBH23PPR/1B represents a robust and efficient solution for modern satellite TV reception, maintaining STMicroelectronics' reputation for providing innovative semiconductor technologies across various applications.
