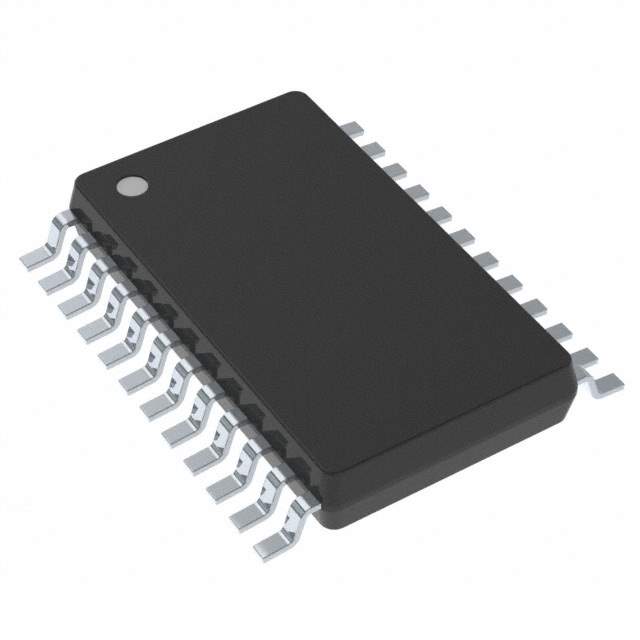

STMicroelectronics LNBH23TPPR - High-Performance Satellite LNB Controller

The LNBH23TPPR from STMicroelectronics is a cutting-edge satellite LNB (Low Noise Block) controller integrated circuit, designed to address the needs of modern satellite TV reception systems. This device is part of ST's portfolio of satellite LNB controllers that offer enhanced performance, reliability, and integration for satellite receiver systems.

This controller is engineered to provide the necessary voltages and signals to the LNB downconverter in the satellite dish. It is capable of supporting both single and dual polarization LNBs, making it a versatile solution for various satellite system configurations. The LNBH23TPPR offers a wide range of features that make it an ideal choice for high-performance satellite TV applications.

One of the standout features of the LNBH23TPPR is its I<sup>2C-compatible interface, which allows for seamless communication with the majority of microcontrollers used in satellite receivers. This interface enables the user to control various functions such as tone generation, amplification, and voltage regulation, ensuring compatibility with different broadcast standards, including DVB-S and DVB-S2.

The LNBH23TPPR also boasts a built-in step-up DC-DC converter, which is highly efficient and ensures a stable supply voltage to the LNB, even under varying load conditions. With its ability to provide selectable output voltages of 13V or 18V, it can accommodate both vertical and horizontal polarization requirements. Additionally, the device features a low-noise figure, which is critical for maintaining signal integrity and achieving high-quality audio and video reception.

For added protection, the LNBH23TPPR incorporates several safety features, including over-temperature protection, over-current protection, and under-voltage lockout. These features help to safeguard the system against damage from electrical anomalies and ensure a longer operational lifespan for the satellite LNB controller.

In summary, the LNBH23TPPR from STMicroelectronics is a highly integrated, feature-rich satellite LNB controller that offers excellent performance, robust protection features, and ease of use through its I<sup>2C interface. It is a top choice for manufacturers and designers looking to create or upgrade satellite TV reception systems with a reliable and efficient LNB control solution.
