Products specifications

Manufacturer STMicroelectronics
Packaging Tray
Part Status Obsolete (End Of Life)
Type Analog
Axis X (Pitch), Y (Roll)
Range °/s ±300
Sensitivity (mV/°/s) 33.3
Bandwidth 140Hz
Output Type Analog Voltage
Supply Voltage (V) 2.7V ~ 3.6V
Current - Supply 6.8mA
Temperature Range - Operating -40°C ~ 85°C

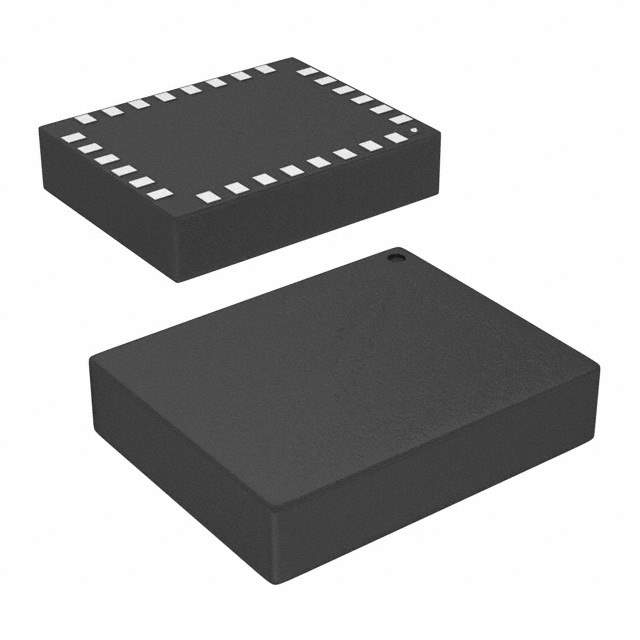

Manufacturer Package 28-TFLGA
Part Number Series LPY430
Manufacturer Pack Quantity 490
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807282-LPY430AL
Ultra Librarian 3D Model Ultra Librarian LPY430AL CAD Model

Description

The LPY430AL from STMicroelectronics is a high-performance dual-axis gyroscope designed to provide top-tier motion sensing capabilities. This MEMS (Micro-Electro-Mechanical Systems) gyroscope is engineered specifically for angular rate measurement in two perpendicular axes, making it an ideal choice for a wide range of applications, including gaming devices, virtual reality input devices, GPS navigation systems, and robotics.

Key Features

  • Two-axis gyroscopic sensing: Capable of detecting rotations around both the pitch and yaw axes, providing comprehensive angular motion detection.
  • High sensitivity: Offers excellent sensitivity levels with a typical value of 3.3 millivolts per degree per second (mV/°/s).
  • Wide measurement range: Allows for a large range of angular rate detection, suitable for high-dynamic applications.
  • Low power consumption: Designed for efficiency, which is crucial for battery-powered devices, ensuring longer operation times.
  • Integrated low-pass filters: These filters improve measurement accuracy by reducing noise and are easily configurable to suit various application requirements.

Performance and Durability

The LPY430AL gyroscope is built to deliver reliable performance under various conditions. It operates within an extended temperature range, ensuring consistent output and stability across different environments. Its robust design makes it resistant to mechanical shocks and vibrations, which is essential for maintaining accuracy in dynamic applications.

Applications

STMicroelectronics' LPY430AL is versatile and can be integrated into a multitude of products:

  • Enhancing the user experience in gaming and virtual reality through precise motion tracking.
  • Improving accuracy in GPS navigation systems by providing additional angular rate data.
  • Enabling advanced robotics applications where orientation and movement control are critical.
  • Assisting in the stabilization of camera systems and drones.

With its exceptional performance and adaptability, the LPY430AL stands out as a superior choice for designers and engineers looking to incorporate precise angular rate sensing into their projects.
