Analog Devices Inc. ADXRS613BBGZ Gyroscope

The ADXRS613BBGZ from Analog Devices Inc. is a high-performance, angular rate sensor (gyroscope) that leverages the robust and proven silicon micro-machining techniques to provide cutting-edge motion sensing capabilities. This MEMS (Micro-Electro-Mechanical Systems) gyroscope is designed to measure angular velocity with high precision and reliability, making it an ideal choice for a wide range of industrial, automotive, and consumer applications where accurate rotational measurements are crucial.

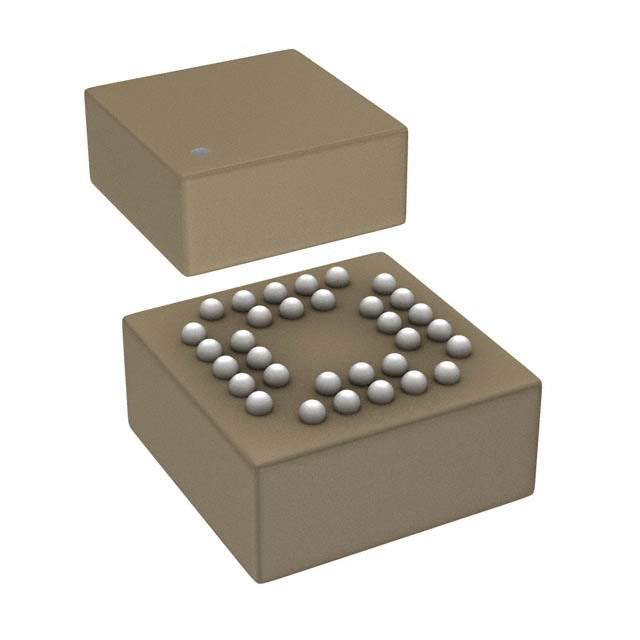

With its compact ball grid array (BGA) package, the ADXRS613BBGZ offers a small footprint, allowing for easy integration into space-constrained designs. The device operates on a single 5.0 V supply and features a temperature range of -40°C to +105°C, ensuring consistent performance across diverse operating conditions.

The gyroscope's output is an analog voltage that is proportional to the angular rate about the axis of sensitivity. The ADXRS613BBGZ has a full-scale range of ±300°/sec and a sensitivity of 5 mV/°/sec, providing precise readings for applications requiring fine motion control and stabilization. The device also includes a temperature sensor output, allowing for temperature compensation and increased accuracy over the full operating range.

One of the key advantages of the ADXRS613BBGZ is its high vibration rejection and shock survivability. The sensor is highly robust and can withstand mechanical shocks of up to 10,000g, making it suitable for use in harsh environments where reliability is paramount. Additionally, the gyroscope incorporates advanced noise filtering and a differential quad-sensor design, which minimizes the influence of linear acceleration and vibration, resulting in cleaner, more accurate data.

For ease of use, the ADXRS613BBGZ includes a self-test capability, which verifies the integrity of the sensor and the electronics. This feature simplifies system diagnostics and maintenance, ensuring that the device is functioning correctly throughout its lifespan.

Whether it's for vehicle stability control, platform stabilization, robotics, or instrumentation, the ADXRS613BBGZ from Analog Devices Inc. stands out as a reliable and precise solution for your angular rate sensing needs.
