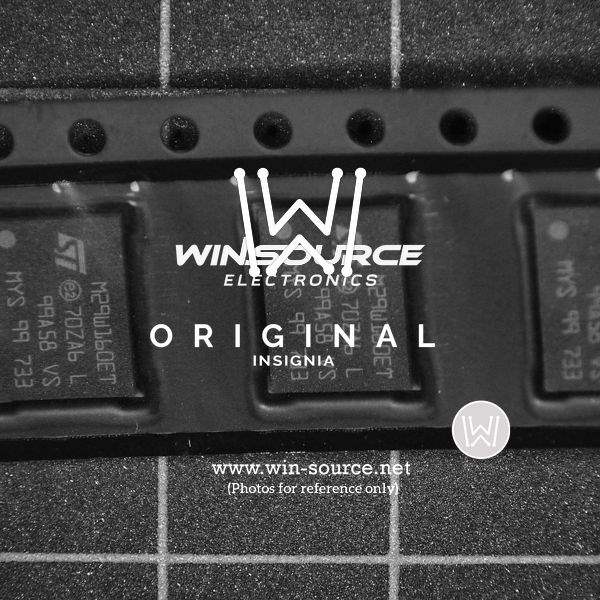

STMicroelectronics M29W160ET70ZA6 Flash Memory

The M29W160ET70ZA6 is a high-performance 16 Mbit (1Mb x16, Boot Block) Flash memory module from STMicroelectronics, designed to deliver robust data storage and quick access times. This non-volatile memory chip is a perfect solution for applications where reliable and fast memory is critical, such as in advanced mobile devices, automotive electronics, and various embedded systems.

The device operates on a single 3V to 3.6V power supply, making it an energy-efficient choice for modern electronic designs. It comes in a 48-pin TSOP (Thin Small Outline Package) that is ideal for space-constrained applications. The memory is organized as 1M words of 16 bits each, which is beneficial for systems requiring high-density memory with a wide data bus.

One of the key features of the M29W160ET70ZA6 is its boot block architecture. This allows for a secure area of memory to be used for storing boot code, which can be protected from accidental erasure or programming. The boot block can be located at either the top or bottom of the memory address range, providing flexibility for system design.

The memory module also supports a variety of read and write operations, including burst read, which significantly improves the data transfer rate. The chip's programming and erasure times are optimized to enhance system performance and reduce downtime. Additionally, the M29W160ET70ZA6 supports a common flash interface (CFI), which simplifies the integration of the memory into various systems by allowing the device to be identified and accessed by the host hardware or software.

For data protection and reliability, the M29W160ET70ZA6 includes features such as hardware block protection, which prevents unintended changes to data, and an extended temperature range, ensuring operation in extreme environments.

In summary, the M29W160ET70ZA6 from STMicroelectronics is a versatile and reliable flash memory module that provides a combination of high density, low power consumption, and advanced features for secure data storage. Its robust design and flexible architecture make it suitable for a wide range of applications that require dependable non-volatile memory solutions.
