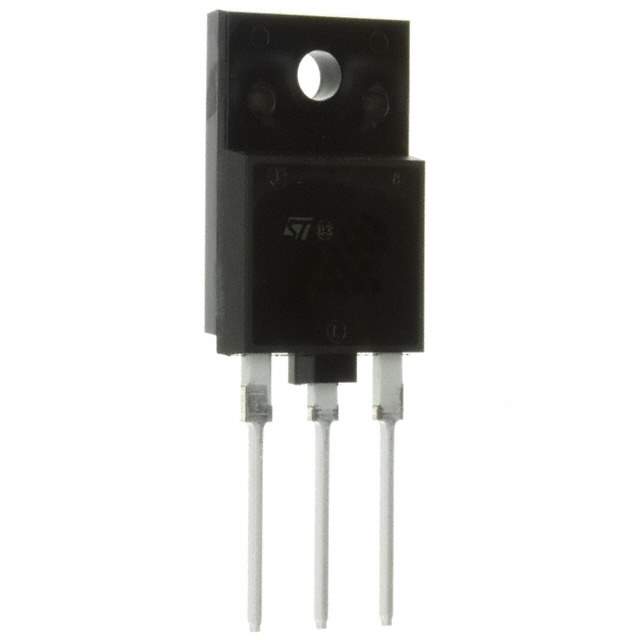

The MD2001FX is a state-of-the-art high voltage NPN power transistor developed by STMicroelectronics, a leader in semiconductor solutions. This robust transistor is designed to handle high power and high voltage applications with efficiency and reliability. It is particularly well-suited for horizontal deflection stages in high-resolution monitors, high fidelity amplifiers, and switching power supplies.

Key Features

• Voltage Capabilities: It can withstand high voltages, making it an ideal choice for circuits that require a high breakdown voltage.
• High Speed: The MD2001FX boasts a high switching speed which is essential for applications such as switching regulators, inverters, and motor controls.
• Power Handling: This component is capable of handling significant power levels, contributing to its effectiveness in power amplification and conversion applications.
• Thermal Performance: It has excellent thermal characteristics, ensuring that it operates within safe temperature ranges even under high load conditions.

Applications

The MD2001FX is versatile and can be used in a wide array of applications. Its robustness makes it suitable for:

• Horizontal deflection outputs for TVs
• High-resolution monitor displays
• High fidelity audio amplifiers
• Switching power supplies
• Power regulators and converters
• Motor control circuits

Product Specifications

Parameter Value Collector-Emitter Voltage (V<sub>CEO) High Voltage Collector Current (I<sub>C) High Current Configuration Single NPN Package ISOWATT218FX

For detailed technical specifications and application notes, customers are advised to consult the official datasheet and product documentation available on the STMicroelectronics website.
