Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 2.7V
Maximum Input Voltage 6V
Nominal Output Voltage (Min/Fixed) 0.8V
Maximum Output Voltage 5.22V
Output Current 1.5A
Frequency - Switching 1.5MHz
Synchronous Rectifier Yes
Temperature Range - Operating -30°C to 85°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN (3x3)
Win Source Part Number 1102512-ST1S06APUR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ST1S06APUR CAD Model

Description

The ST1S06APUR is a highly efficient, monolithic synchronous step-down regulator produced by STMicroelectronics, a leader in semiconductor solutions. This regulator is designed to deliver a constant, stable output voltage with a high level of accuracy, making it an excellent choice for portable and battery-powered applications where energy efficiency is paramount.

Key Features

  • Output Voltage Range: The ST1S06APUR provides a wide output voltage range, which is adjustable from 0.8 V to Vin, catering to the needs of various low-voltage applications.
  • High Efficiency: With an efficiency rate that can reach up to 95%, this step-down regulator ensures minimal power loss during voltage conversion, extending battery life in portable devices.
  • Maximum Output Current: It can deliver up to 1.5 A of output current, making it suitable for powering a range of devices, from microcontrollers to small motors.
  • Switching Frequency: The device operates at a 1.5 MHz fixed-frequency PWM that allows for the use of small surface-mount inductors and capacitors, thereby reducing the overall solution size and cost.
  • Thermal Protection: The ST1S06APUR includes thermal shutdown protection to prevent damage from overheating, ensuring reliable operation under various conditions.
  • Low Dropout Operation: It is capable of low dropout operation, which maintains efficiency even when the input voltage is very close to the output voltage.

Applications

The ST1S06APUR is versatile and can be used in a multitude of applications. It is particularly well-suited for:

  • Portable and battery-powered devices
  • Microprocessor and DSP core supplies
  • Memory and logic supplies
  • Consumer electronics such as digital cameras and personal media players

Package and Availability

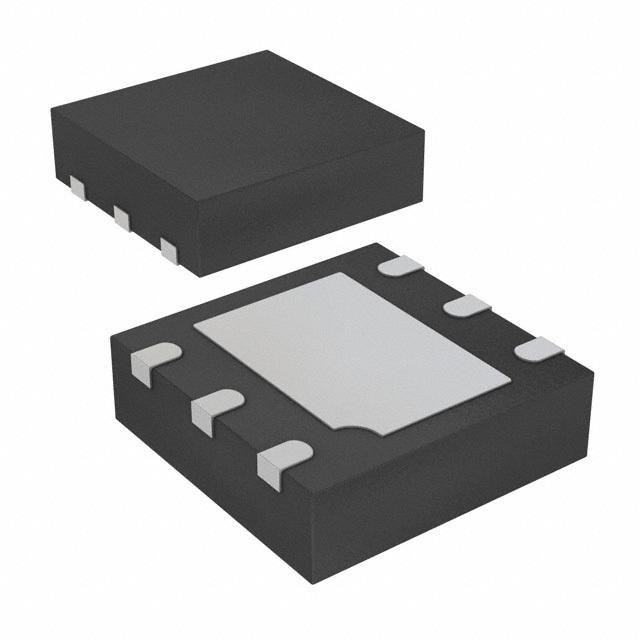

The regulator is available in a compact DFN6 (3x3 mm) package, making it ideal for space-constrained applications. Its small footprint, combined with the low number of external components required, allows for a minimalistic and cost-effective power supply design.

For detailed specifications, application notes, and further information, customers can access the comprehensive datasheet provided by STMicroelectronics or contact their support team for technical assistance.
