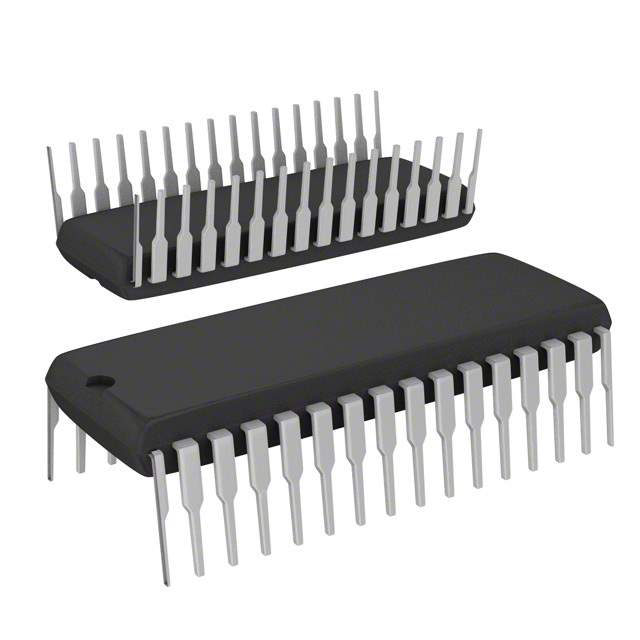

Overview of the ST72C215G2B6 Microcontroller

The ST72C215G2B6 is a versatile microcontroller unit (MCU) from STMicroelectronics, designed to offer a robust set of features for embedded control applications. This MCU is part of the ST7 family, which is known for its high performance and integration capabilities, making it suitable for a wide range of applications, from automotive to industrial control systems.

Key Features

• Core: The ST72C215G2B6 is built around an 8-bit CPU core, providing a balanced trade-off between processing power and power consumption. This makes it an excellent choice for battery-powered or power-sensitive applications.
• Memory: It comes with 8KB of Flash program memory, ensuring ample space for complex programs and algorithms. Additionally, it includes 384 bytes of RAM for data processing and 128 bytes of EEPROM for non-volatile data storage.
• Clock: The MCU supports a wide range of clock sources, including a crystal oscillator, an internal RC oscillator, and an external clock, providing flexibility in different system designs.
• I/O Ports: The device features 35 I/O lines, which can be programmed to support various peripheral functions, allowing for versatile interfacing with external components.
• Timers: Included are advanced timing features such as a main clock controller with a watchdog timer, a real-time base, and a complex timer structure for PWM generation and capture/compare functions.
• Communication Interfaces: The ST72C215G2B6 supports multiple communication protocols, including SPI and I²C, facilitating easy integration into systems requiring serial data exchanges.
• Analog Features: It also boasts an 8-channel, 10-bit Analog-to-Digital Converter (ADC), enhancing its capability to interface with analog sensors and transducers.
• Operating Conditions: The MCU operates over a wide temperature range and has multiple power-saving modes, making it suitable for harsh environments and energy-efficient applications.

Applications

The ST72C215G2B6 is a highly adaptable microcontroller that can be employed in a vast array of applications. Its robust feature set makes it ideal for automotive systems, including body control modules and sensor interfaces. It is also well-suited for industrial applications, such as process control, automation, and robotics. Additionally, its low power consumption and rich peripheral set make it a good choice for consumer electronics and handheld devices.

With its combination of performance, memory options, and integrated peripherals, the ST72C215G2B6 from STMicroelectronics is a powerful and flexible solution for a multitude of embedded control challenges.
