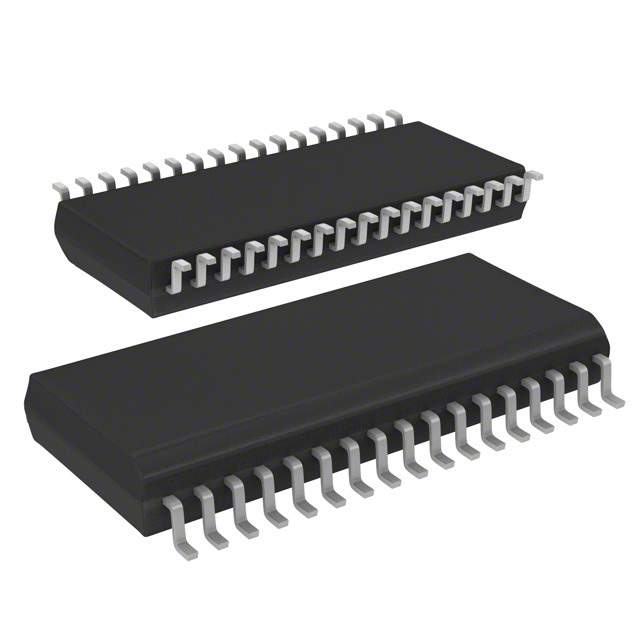

The ST72F63BK4M1 is a versatile and powerful microcontroller from STMicroelectronics, designed to offer an optimal balance between performance, power consumption, and cost. This 8-bit MCU is built around a high-performance STM7 core, making it an ideal choice for a wide range of applications in the automotive, industrial, and consumer electronics sectors.

Key Features

• Core: STM7 8-bit core, with up to 16 MHz clock frequency.
• Memory: Comes with 4 KB of Flash program memory and 1 KB of RAM, ensuring ample space for complex applications.
• EEPROM: 128 bytes of EEPROM with read-while-write support for data storage.
• I/O Ports: 28/32 programmable I/O lines, providing flexibility in peripheral connections.
• Timers: Includes three 16-bit timers for precise event management and timing operations.
• Communication Interfaces: Equipped with SPI and I2C interfaces for multi-device communication.
• ADC: 10-bit analog-to-digital converter with up to 5 multiplexed channels for accurate sensor readings.
• Supply Voltage: Operates over a wide range of supply voltages from 3.0 V to 5.5 V, accommodating various power supply designs.
• Temperature Range: Industrial temperature range from -40°C to 85°C, ensuring reliable operation in harsh environments.
• Package: Available in a QFP32 package, suitable for compact PCB designs.

Applications

The robust feature set of the ST72F63BK4M1 makes it particularly well-suited for applications such as:

• Automotive control systems
• Industrial automation and control
• Smart home devices
• Consumer electronics
• Personal health monitoring systems

With its integrated peripherals and support for multiple communication protocols, the ST72F63BK4M1 is a highly adaptable MCU that can serve as the heart of your next embedded system. Its robust design and comprehensive development support from STMicroelectronics make it a reliable choice for engineers and designers seeking a cost-effective yet powerful microcontroller solution.
