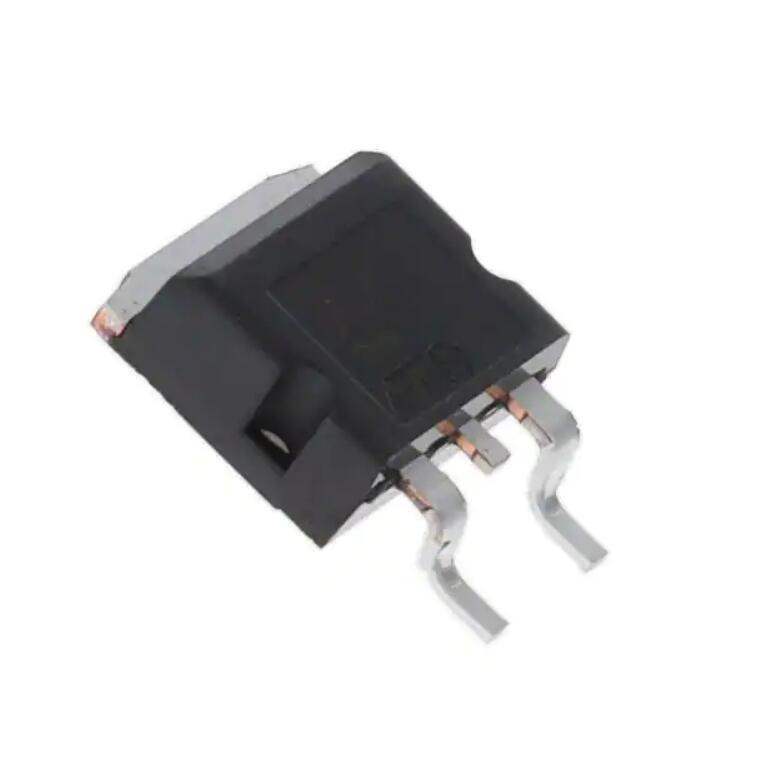

The STB35N65DM2 is a high-performance N-channel Power MOSFET presented by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology. This device is part of their MDmesh™ DM2 series, which is renowned for its fast recovery diode and low on-resistance, making it an excellent choice for a wide range of power applications.
Key Features
- Voltage Rating: The STB35N65DM2 boasts a robust 650V drain-source voltage (V<sub>DS), which is ideal for high-voltage switching applications.
- Low On-Resistance: With an on-resistance (R<sub>DS(on)) of just 0.085Ω, this MOSFET ensures high efficiency and reduced power losses during operation.
- High Current Capability: It is capable of handling continuous drain currents (I<sub>D) up to 31A, making it suitable for high-power applications.
- Fast Recovery Diode: The integrated fast recovery diode is optimized for high-speed switching, reducing switching losses and improving overall performance.
- Enhanced Switching Performance: The device features a very low gate charge (Q<sub>g) and low effective output capacitance (C<sub>oss), which contribute to its fast switching speeds.
- 100% Avalanche Tested: Each unit is rigorously tested for avalanche ruggedness, ensuring reliability under stressful conditions.
Applications
The STB35N65DM2 is versatile and can be used in a variety of applications, including:
- Switch Mode Power Supplies (SMPS)
- LED Lighting
- High-Efficiency DC-DC Converters
- Solar Inverters
- Welding Equipment
- Uninterruptible Power Supplies (UPS)
Package and Quality
This MOSFET is housed in a TO-220 package, which is widely used in commercial and industrial applications due to its robustness and excellent thermal performance. STMicroelectronics is committed to high standards of quality and reliability, ensuring that the STB35N65DM2 meets the stringent requirements of the electronics industry.
For designers and engineers looking for a high-voltage, high-efficiency, and reliable power solution, the STB35N65DM2 from STMicroelectronics is an outstanding choice that combines performance with durability.
