The STD12NM50ND is a highly efficient N-Channel MOSFET from STMicroelectronics, a leader in semiconductor solutions. This power MOSFET is a part of ST's MDmesh™ series, designed with a unique vertical process that delivers low on-resistance and a high dv/dt capability, making it a perfect fit for a wide range of high-efficiency applications.

Key Features

• Voltage Rating: The STD12NM50ND boasts a 500V drain-source voltage (V<sub>DS), providing a robust platform for high-voltage switching applications.
• Current Capacity: It can handle a continuous drain current (I<sub>D) of up to 11 A, allowing for significant power handling capability.
• Low On-Resistance: With an R<sub>DS(on) of only 0.58 Ω, this MOSFET ensures minimal power loss during operation, enhancing overall system efficiency.
• High dv/dt Capability: The device is characterized by a very high dv/dt rating, ensuring reliability in hard-switching applications prone to voltage transients.
• Fast Switching Speed: The fast switching speed of the STD12NM50ND results in reduced switching losses, which is crucial for high-frequency power conversion systems.

Applications

The STD12NM50ND is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• LED Lighting
• High-Efficiency DC/DC Converters
• Motor Control
• Power Management Functions

Package and Quality

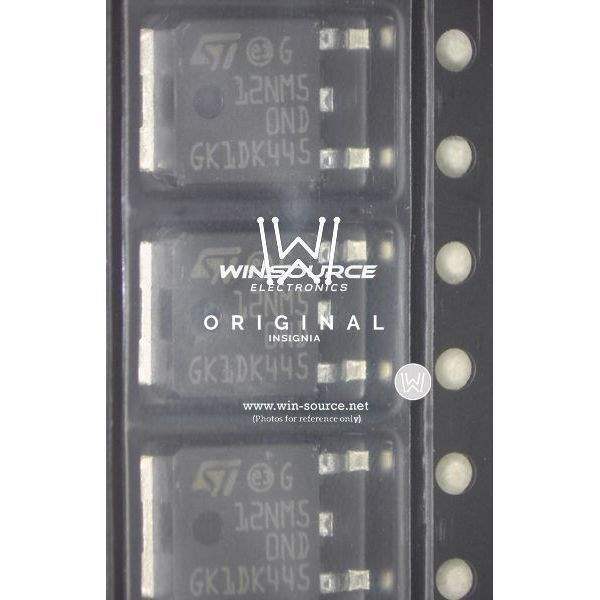

This MOSFET is available in a TO-252 (DPAK) package, which is suitable for compact designs and ensures good thermal performance and reliability. STMicroelectronics is committed to high standards of quality, and the STD12NM50ND is no exception. It is manufactured to meet the stringent requirements of the industrial market, ensuring both durability and long-term performance.

For engineers and designers looking for a reliable and efficient N-Channel MOSFET, the STD12NM50ND from STMicroelectronics is an excellent choice that balances performance with robustness to meet the demanding needs of modern electronic circuits.
