Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Type Power Management
Function Motor Controller/Driver
Embedded Yes, MCU, 8-Bit
Utilized IC / Part ST7FLITEUS5
Primary Attributes Motors (AC)
Supplied Contents Board(s)
Secondary Attributes Potentiometer Speed Control
Other Names STEVAL-IHM013V1,STEVALIHM013V1,-497-6407,497-6407
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Win Source Part Number 1284497-STEVAL-IHM013V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-IHM013V1 CAD Model

Description

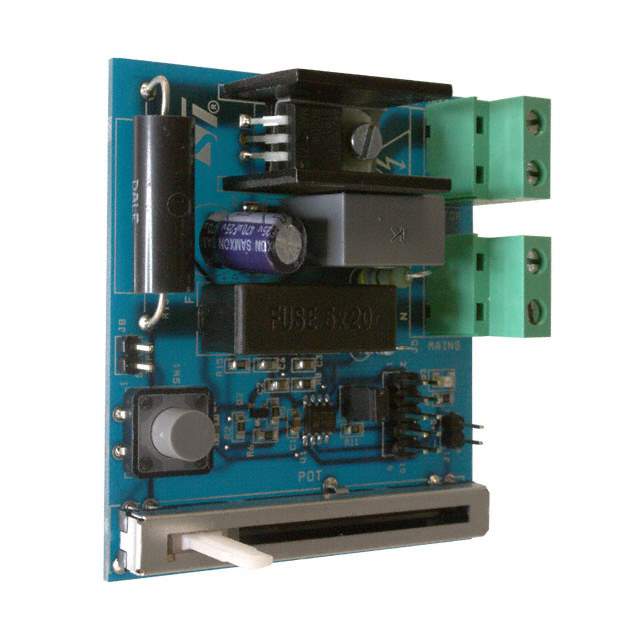

STEVAL-IHM013V1 - STMicroelectronics Low Voltage Three-Phase Inverter Power Board

The STEVAL-IHM013V1 is a sophisticated, compact power board designed by STMicroelectronics specifically for low voltage three-phase inverter applications. It is an integral part of a complete system solution for driving three-phase motors, which are commonly found in a wide range of consumer, industrial, and automation equipment.

This power board is based on the advanced STGIPN3H60 – a smart power module that integrates IGBTs, freewheeling diodes, and an operational amplifier. The integration of these components into a single package makes the STEVAL-IHM013V1 highly efficient, reliable, and easy to use. With an operating voltage range from 7 V to 20 V, this board is optimized for low voltage operations, making it particularly suitable for battery-powered applications where energy efficiency is critical.

The STEVAL-IHM013V1 is designed to work seamlessly with the STM32 microcontroller via the ST morpho connector, which allows for easy interfacing and control. This feature enables the rapid development of applications, thanks to the extensive support and software provided by STMicroelectronics, including the STM32 PMSM FOC Software Development Kit.

Key features of the STEVAL-IHM013V1 include overcurrent and overvoltage protection, undervoltage lockout, and thermal shutdown, ensuring safe operation under various conditions. The board also offers a hall/encoder motor sensor interface, facilitating the implementation of precise motor control algorithms.

With its compact size and robust design, the STEVAL-IHM013V1 is an excellent choice for designers looking to create efficient, reliable, and high-performance motor control systems without the need for complex power stage design. Whether it's for pumps, fans, power tools, or any other low voltage motor control application, the STEVAL-IHM013V1 provides a flexible and powerful solution that can help accelerate the product development cycle.

For further information, datasheets, and technical support, engineers and product designers are encouraged to visit the STMicroelectronics website, where they can also find additional resources to aid in the development of their projects.
