Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 350mA
Outputs and Type 1, Isolated
Voltage - Output 32V
Features Dimmable
Voltage - Input 185 ~ 265 VAC
Supplied Contents Board(s)
Utilized IC / Part VIPer22A-E
Other Names 1026-STEVAL-ILL001V1,-497-5071,497-5071
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283872-STEVAL-ILL001V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL001V1 CAD Model

Description

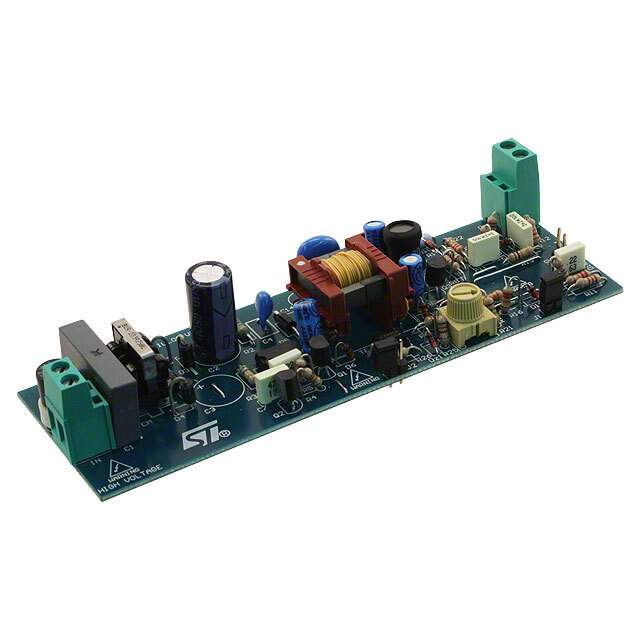

The STEVAL-ILL001V1 is a highly sophisticated evaluation board designed and manufactured by STMicroelectronics, a global semiconductor leader. This product is specifically engineered for testing and evaluating the performance of LED driver solutions in various lighting applications.

At the heart of the STEVAL-ILL001V1 is an advanced LED driver capable of providing a constant current to ensure optimal LED performance. This feature is crucial for maintaining consistent brightness and maximizing the lifespan of the LEDs. The board is designed with flexibility in mind, supporting a wide range of input voltages and accommodating different LED configurations, making it an ideal platform for developing and prototyping a variety of lighting solutions.

The evaluation board comes equipped with numerous features that facilitate easy experimentation and development. It includes overcurrent protection, thermal shutdown, and PWM dimming capabilities, which are essential for creating adaptable and safe lighting systems. The STEVAL-ILL001V1 also provides designers with the ability to fine-tune the LED current, allowing for precise control over the lighting intensity and power consumption.

Another key advantage of the STEVAL-ILL001V1 is its user-friendly interface. The board is designed with connectors and jumpers that enable quick setup and modifications without the need for complex wiring or soldering. This ease of use accelerates the development process and helps engineers focus on innovation rather than setup intricacies.

STMicroelectronics has ensured that the STEVAL-ILL001V1 is not only functional but also robust. Built with high-quality components and adhering to stringent quality standards, this evaluation board is reliable for both laboratory testing and field trials.

In summary, the STEVAL-ILL001V1 from STMicroelectronics is a versatile and reliable evaluation board that is perfect for developers looking to explore and create advanced LED lighting solutions. Its combination of performance, flexibility, and user-friendliness makes it an invaluable tool in the development of energy-efficient and high-performance lighting systems.
