Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 2.08A
Outputs and Type 1, Isolated
Voltage - Output 48V
Voltage - Input 90 ~ 265 VAC
Supplied Contents Board(s)
Utilized IC / Part L6585DE
Other Names 497-15179
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283875-STEVAL-ILL038V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL038V2 CAD Model

Description

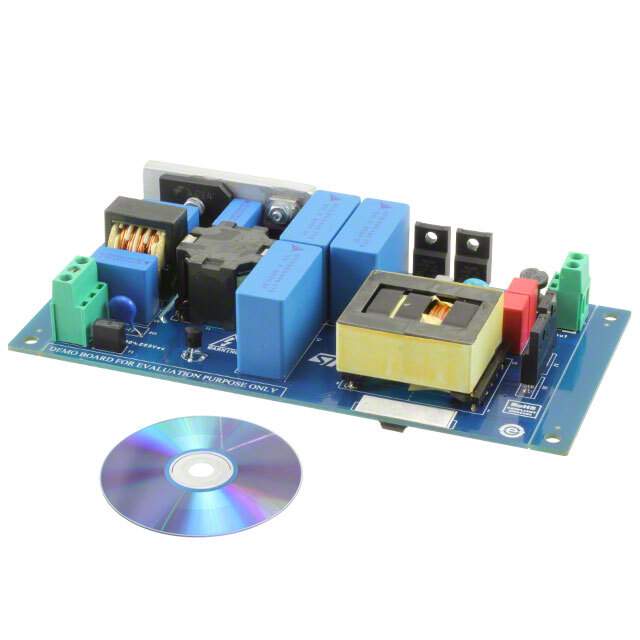

STEVAL-ILL038V2 - LED Driver Evaluation Board by STMicroelectronics

The STEVAL-ILL038V2 is an innovative evaluation board designed by STMicroelectronics, tailored for driving LEDs with high precision and efficiency. This state-of-the-art board is an excellent tool for engineers and designers seeking to test and implement LED solutions in their applications, ranging from general lighting to more specialized uses such as automotive, industrial, and architectural lighting.

Key Features

  • Advanced LED Driver: The board includes the L6562A, a transition-mode power factor corrector, and the L6387E, a high-voltage half-bridge driver, which together deliver optimal performance in driving LEDs.
  • High Efficiency: With a focus on energy savings, the STEVAL-ILL038V2 offers high power factor and low THD, ensuring efficient operation and compliance with global energy standards.
  • Dimming Capability: It features dimming functionality, allowing for adjustable light levels to suit any environment or preference.
  • Thermal Protection: The board is equipped with thermal shutdown protection to prevent overheating, thereby extending the lifespan of the LEDs.
  • Flexible Input Voltage: Designed to accommodate a wide range of input voltages, the STEVAL-ILL038V2 is versatile for use in various geographical regions.

Applications

  • General purpose LED lighting
  • Street lighting
  • Architectural lighting
  • Signage and signal lighting
  • Emergency lighting

Design Advantages

The evaluation board's design is optimized for quick setup and ease of use, allowing designers to rapidly prototype and test their LED lighting solutions. It includes all necessary interfaces and power supply components, making it a comprehensive solution for immediate deployment. Moreover, the STEVAL-ILL038V2 is supported by extensive documentation and software tools provided by STMicroelectronics, which facilitate development and customization.

Whether you are developing cutting-edge LED systems or exploring new lighting concepts, the STEVAL-ILL038V2 evaluation board is an indispensable asset that provides reliability, flexibility, and performance to meet the most demanding lighting requirements.
