Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Current - Output / Channel 350mA
Outputs and Type 1, Non-Isolated
Voltage - Output 40V
Voltage - Input 6V ~ 24V
Supplied Contents Board(s)
Utilized IC / Part LED6001
Base Product Number STEVAL
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1283883-STEVAL-ILL049V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL049V1 CAD Model

Description

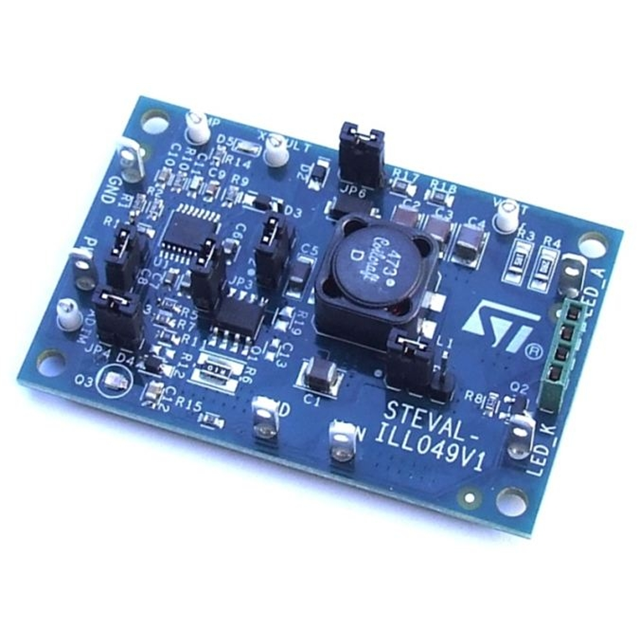

STEVAL-ILL049V1 LED Driver Evaluation Board by STMicroelectronics

The STEVAL-ILL049V1 is a sophisticated evaluation board from STMicroelectronics, designed for testing the performance and capabilities of LED drivers in various lighting applications. This evaluation platform is tailored specifically for the LED6001 chip, a monolithic, step-down, current-mode PWM converter optimized for driving high brightness LEDs.

With its advanced features and flexible design, the STEVAL-ILL049V1 is an ideal solution for developers and engineers looking to explore and prototype LED lighting solutions that require high efficiency, reliability, and precise brightness control. The board supports a wide input voltage range, making it suitable for a variety of power supply scenarios, from battery-operated devices to industrial lighting systems.

The evaluation board is equipped with several key features that enhance its usability and performance:

  • Adjustable Output Current: Users can set the LED current up to 3 A, allowing for the testing of LEDs with different current requirements.
  • High Efficiency: The LED6001 driver ensures efficient power conversion, which is critical for maintaining low power consumption and heat dissipation in LED applications.
  • Dimming Capability: The board supports both analog and PWM dimming, providing users with the flexibility to implement various light intensity levels and dynamic lighting effects.
  • Thermal Protection: The LED6001 includes thermal shutdown protection, safeguarding the system from overheating and ensuring the longevity of the LEDs and the driver.
  • Open LED Detection: The driver can detect open LED conditions, preventing damage to the system and ensuring safe operation.
  • Easy-to-use Connectors: The evaluation board comes with convenient connectors for easy interfacing with external control and power systems.

Designed for a quick and easy setup, the STEVAL-ILL049V1 allows for immediate operation right out of the box. Its compact size and comprehensive documentation make it an accessible and informative tool for designers looking to delve into the world of LED lighting technology.

Whether you are developing residential, commercial, or industrial lighting solutions, the STEVAL-ILL049V1 from STMicroelectronics provides a reliable and versatile platform for optimizing your LED driver designs and bringing your innovative lighting concepts to life.
