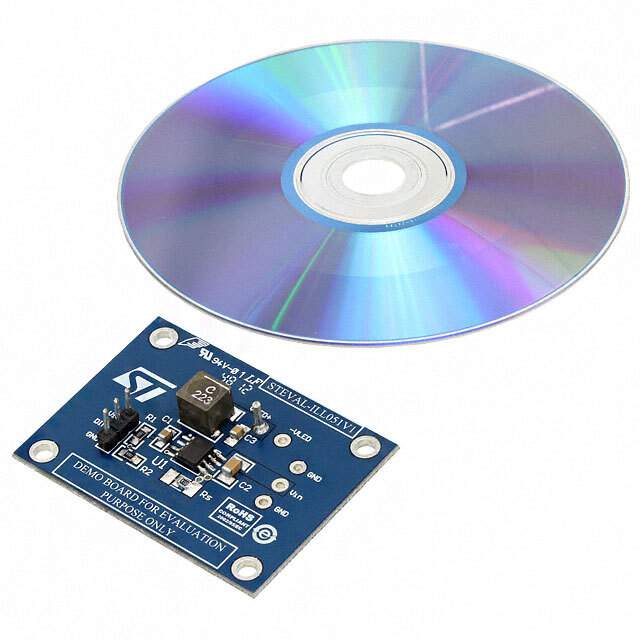

The STEVAL-ILL051V1 from STMicroelectronics is a sophisticated LED driver evaluation board designed to demonstrate the capabilities of the LED6001 chip. This evaluation board is specifically tailored for driving a single LED or an array of LEDs with a maximum power of 3W. It is an ideal solution for those looking to explore the features and performance of the LED6001 in lighting applications.

Key Features

• Integrated LED6001 Chip: The board comes equipped with the LED6001 step-down (buck) LED driver, which ensures high efficiency and reliability in controlling LED brightness and managing thermal conditions.
• Adjustable Output Current: Users can easily set the output current to ensure optimal performance for a variety of LED configurations, making the board highly versatile for different lighting scenarios.
• Wide Input Voltage Range: The STEVAL-ILL051V1 can operate with an input voltage range from 6.5V to 48V, accommodating a broad spectrum of power supplies and applications.
• Dimming Capability: The board supports both analog and PWM dimming control methods, providing flexibility in adjusting the light intensity according to specific requirements.
• Overcurrent and Thermal Protection: With built-in overcurrent and thermal protection, the evaluation board ensures the longevity and safety of the LEDs and the driver itself.
• Easy-to-use Connectors: The evaluation board features user-friendly connectors for easy setup and integration into existing systems.

Applications

The STEVAL-ILL051V1 is suitable for a wide range of LED lighting applications, including:

• Architectural lighting
• Task and accent lighting
• General purpose LED lighting
• LED modules for signs and backlights

Whether you are a professional designer or a hobbyist, the STEVAL-ILL051V1 evaluation board offers an excellent platform for experimenting with and understanding the functionality of the LED6001 driver. The board's comprehensive features and robust design make it a valuable tool for developing efficient and innovative LED lighting solutions.
