Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Current - Output / Channel 3A
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 5.5V ~ 48V
Supplied Contents Board(s)
Utilized IC / Part LED5000
Base Product Number STEVAL
Other Names 497-15184
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283882-STEVAL-ILL064V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL064V1 CAD Model

Description

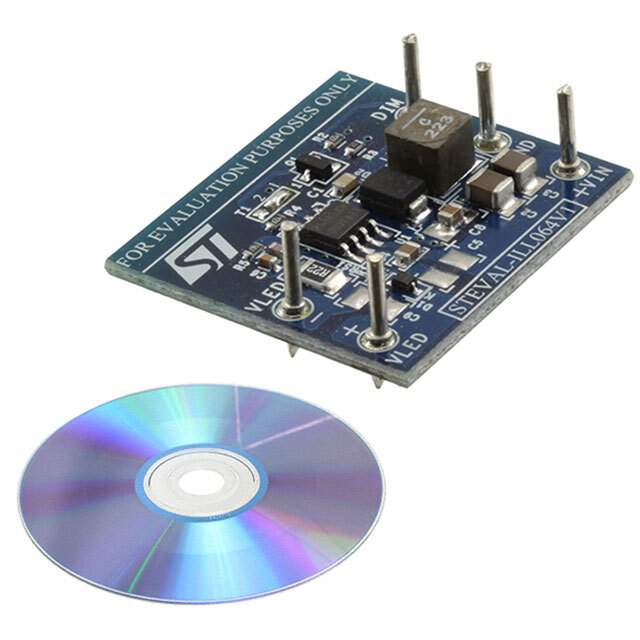

STEVAL-ILL064V1 LED Driver Evaluation Board

The STEVAL-ILL064V1 from STMicroelectronics is a sophisticated evaluation platform designed specifically for LED lighting applications. This evaluation board is centered around the highly efficient LED6001 chip, a step-down monolithic switching regulator that is capable of delivering up to 3 A of current to the load. The board is engineered to demonstrate the capabilities of the LED6001 in driving a single LED string with an input voltage ranging from 8 V to 48 V.

One of the standout features of the STEVAL-ILL064V1 is its wide input voltage range, which makes it suitable for a variety of applications, including industrial lighting, street lighting, and architectural lighting. The board is also equipped with a dimming function, which is achieved through a PWM (Pulse Width Modulation) signal, allowing for adjustable brightness levels and contributing to energy savings and longer LED life.

The LED6001 regulator incorporated in the STEVAL-ILL064V1 offers a high level of integration, with features such as an internal 250 mΩ N-channel power MOSFET that enhances the thermal performance and overall reliability of the system. Additionally, the board is designed with overvoltage, overcurrent, and thermal protection features, ensuring the safety and durability of the LED driver under various conditions.

For ease of use, the STEVAL-ILL064V1 evaluation board includes connectors and test points that facilitate the monitoring of the LED current, the input and output voltages, and the PWM dimming signal. Engineers and developers can quickly set up the board and begin experimenting with different configurations to optimize their LED lighting solutions.

The compact design and robust construction of the STEVAL-ILL064V1 make it an ideal tool for rapid prototyping and testing in the development of LED lighting systems. With its advanced features and flexible design, the STEVAL-ILL064V1 is an excellent representation of STMicroelectronics' commitment to providing innovative solutions for the lighting industry.

To further assist in development, STMicroelectronics provides comprehensive technical documentation, including datasheets, application notes, and design guidelines, ensuring that users can maximize the potential of the STEVAL-ILL064V1 evaluation board in their LED lighting projects.
