Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Outputs and Type 16, Non-Isolated
Features Dimmable
Voltage - Input 6V ~ 28V
Supplied Contents Board(s)
Utilized IC / Part ALED1642GW
Base Product Number STEVAL
Other Names 497-16396,-497-16396
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1283864-STEVAL-ILL073V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL073V1 CAD Model

Description

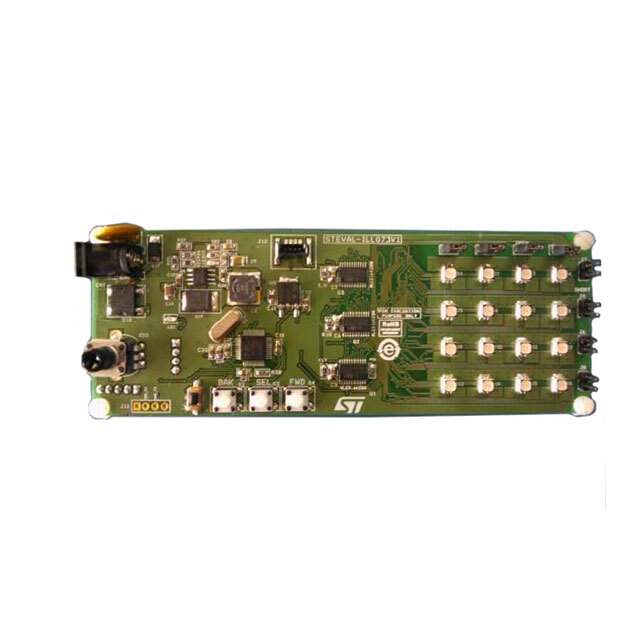

Product Overview: STEVAL-ILL073V1 from STMicroelectronics

The STEVAL-ILL073V1 is a state-of-the-art LED driver evaluation board presented by STMicroelectronics, designed to showcase the capabilities of the LED6000 step-down monolithic switching regulator in a typical LED driving application. This innovative product is tailored for professionals and electronics enthusiasts who require a high-efficiency, adjustable constant current LED driver.

Key Features

  • High Efficiency: The LED6000 integrated in the STEVAL-ILL073V1 ensures efficient energy conversion, which is crucial for reducing heat dissipation and improving the longevity of the LEDs.
  • Wide Input Voltage Range: With an input voltage range of 6.5V to 48V, the board is versatile and can be used in a variety of applications, from battery-operated devices to industrial lighting systems.
  • Adjustable Output Current: The output current can be adjusted up to 3A, allowing users to customize the brightness of the connected LEDs to their specific needs.
  • Dimming Capability: The board supports both analog and PWM dimming, providing users with the flexibility to control the light intensity with precision.
  • Thermal Protection: The LED6000 is equipped with overtemperature protection, ensuring the circuit's reliability and safety under various operating conditions.

Applications

The STEVAL-ILL073V1 is ideal for a broad range of LED lighting applications, including:

  • Architectural lighting
  • Street lighting
  • Industrial lighting
  • General purpose LED lighting

Design and Development

The evaluation board is a ready-to-use solution that accelerates the design and development process for engineers working on LED lighting projects. It is equipped with connectors and test points that facilitate easy measurement and debugging. Additionally, the compact design of the STEVAL-ILL073V1 makes it easy to integrate into existing systems or use as a standalone unit in new designs.

Whether you're developing cutting-edge LED lighting solutions or experimenting with high-power LED applications, the STEVAL-ILL073V1 from STMicroelectronics provides the performance, flexibility, and reliability you need to bring your projects to light.
