Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Current - Output / Channel 1A
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 4.5V ~ 60V
Supplied Contents Board(s)
Utilized IC / Part LED6000
Base Product Number STEVAL
Other Names 497-16089
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1283885-STEVAL-ILL078V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL078V1 CAD Model

Description

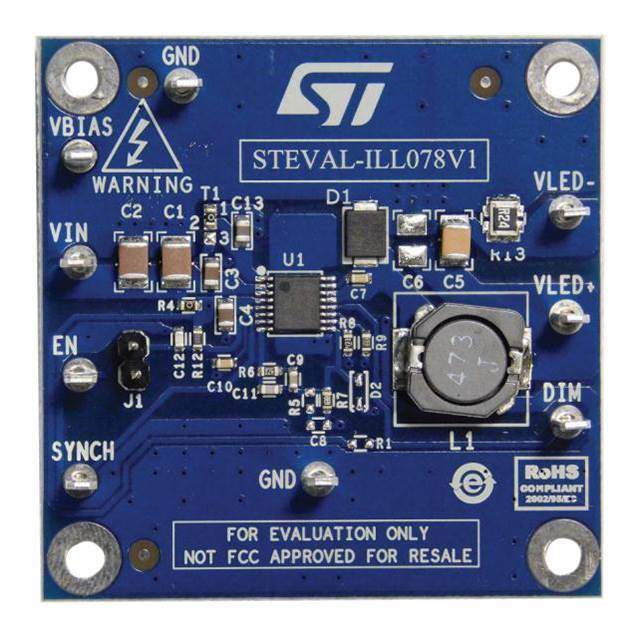

STEVAL-ILL078V1 LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL078V1 is a sophisticated evaluation board designed by STMicroelectronics, specifically tailored for LED lighting applications. This state-of-the-art platform is built to showcase the performance of the LED6000 step-down monolithic switching regulator, which is capable of delivering up to 3 A of current to the load. The LED6000 is integrated with a 100 mΩ high-side MOSFET that ensures high-efficiency power conversion, which is crucial for energy-sensitive applications.

The board operates over a wide input voltage range from 4.5 V to 38 V, making it versatile for a variety of LED driving scenarios. With its ability to handle such a wide range of input voltages, the STEVAL-ILL078V1 is suitable for use in both industrial and consumer lighting environments. Additionally, the evaluation board is equipped with a dimming control feature, providing users with the option to adjust the brightness of the LED to their desired levels, enhancing user experience and energy savings.

One of the key features of the STEVAL-ILL078V1 is its thermal protection, which ensures the longevity and reliability of the board. This is particularly important in LED applications where prolonged operation can lead to significant heat generation. Moreover, the board also includes overvoltage and overcurrent protection, safeguarding the LEDs and the power supply from potential damage caused by electrical anomalies.

The compact design of the STEVAL-ILL078V1, along with its RoHS compliance, demonstrates STMicroelectronics' commitment to environmental considerations and the need for space-saving solutions in modern electronic designs. The evaluation board is an excellent tool for engineers and designers looking to explore the capabilities of the LED6000 regulator and develop energy-efficient LED lighting solutions that meet the stringent demands of today's market.

Whether you are developing residential, commercial, or industrial lighting applications, the STEVAL-ILL078V1 evaluation board is an ideal starting point for your design process, offering flexibility, robust protection features, and high efficiency in a user-friendly package.
