Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Current - Output / Channel 70mA
Outputs and Type 6, Non-Isolated
Features Dimmable
Voltage - Input 6V ~ 32V
Supplied Contents Board(s)
Utilized IC / Part ALED7707
Base Product Number STEVAL
Other Names 497-15864
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283881-STEVAL-ILL067V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL067V1 CAD Model

Description

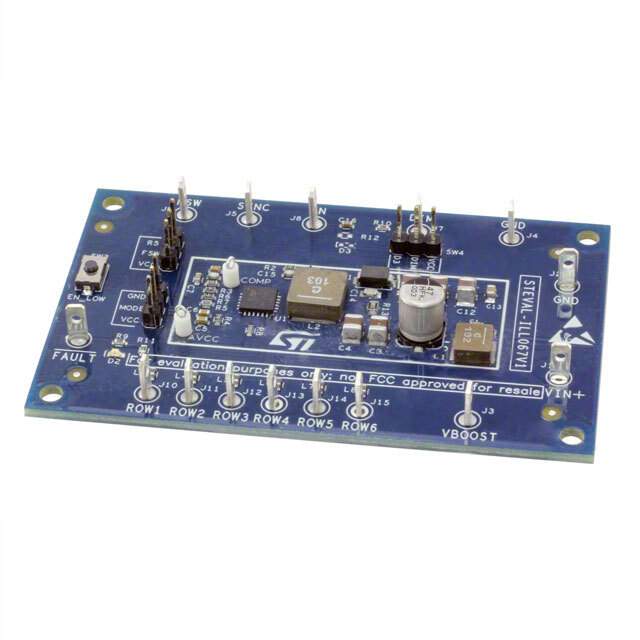

STEVAL-ILL067V1 LED Driver Evaluation Board by STMicroelectronics

The STEVAL-ILL067V1 is a cutting-edge evaluation board designed by STMicroelectronics, specifically tailored for LED lighting applications. This evaluation board showcases the performance and capabilities of the LED6001 chip, a step-down monolithic switching regulator designed to source up to 3 A of current for high brightness LED driving.

Key Features:

  • Integrated LED6001 switching regulator, which provides high efficiency and reduces the number of external components required.
  • Wide input voltage range from 6.5 V to 48 V, accommodating a variety of power supplies and ensuring flexibility in lighting design.
  • Adjustable output current up to 3 A through an external resistor, allowing for precise control over the brightness of the LEDs.
  • Open LED and short-circuit protection features, enhancing the safety and reliability of the system.
  • Thermal shutdown and overvoltage protection, ensuring the longevity of both the LED driver and LEDs.
  • Dimming capability via PWM signal, which allows for a dynamic control of the light intensity.
  • User-friendly layout with test points, facilitating easy measurement and evaluation.

Applications:

The STEVAL-ILL067V1 is ideal for a range of LED lighting applications, including:

  • Street lighting
  • Architectural lighting
  • General purpose LED lighting
  • Industrial lighting systems

Why Choose STEVAL-ILL067V1?

With its robust feature set and the backing of STMicroelectronics' renowned quality, the STEVAL-ILL067V1 evaluation board is an excellent tool for engineers and designers looking to evaluate and implement LED drivers in their lighting solutions. The board's ease of use, coupled with comprehensive protection features, makes it a reliable platform for developing efficient and innovative LED lighting systems.

Whether you are an experienced lighting designer or just starting out, the STEVAL-ILL067V1 provides a versatile and practical platform for testing and refining your LED driver solutions, ensuring optimal performance and compatibility with a wide range of LEDs and power supplies.
