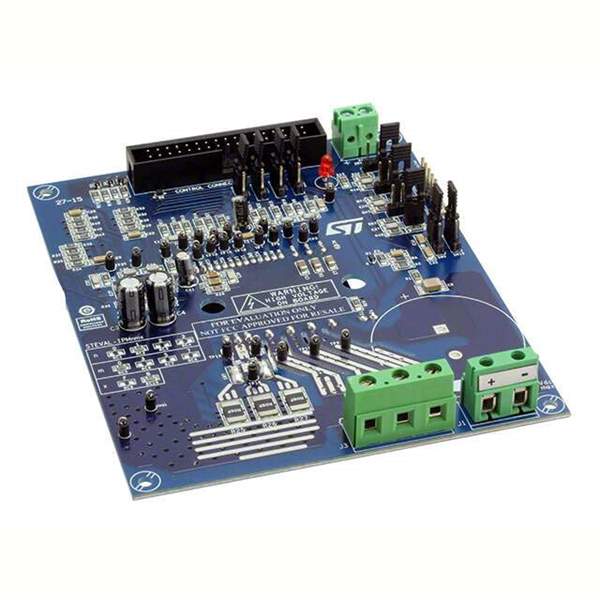

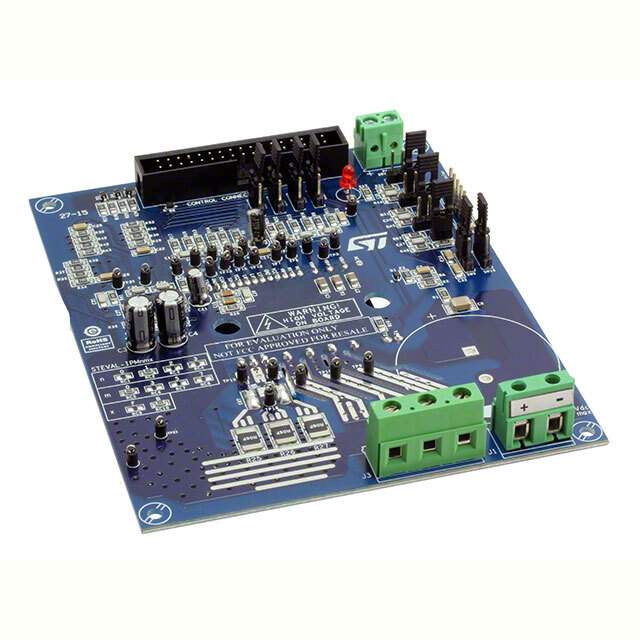

The STEVAL-IPM10B from STMicroelectronics is a highly integrated and efficient intelligent power module (IPM) designed for advanced motor drive applications such as those found in home appliances, fans, pumps, and other low-power motor control scenarios. This compact module is part of the SLLIMM™ (Small Low-Loss Intelligent Molded Module) family, offering a solution that is both space-saving and energy-efficient.

Key Features


• Integrated Design: The module includes a 3-phase inverter with gate drivers and bootstrap diodes, which simplifies the design process by reducing the number of external components required.

• High Power Efficiency: With an advanced MOSFET technology, the STEVAL-IPM10B ensures high power efficiency, which is crucial for reducing heat dissipation and improving the reliability of the end application.

• Compact Footprint: The module's compact design allows for a smaller PCB size, making it ideal for applications where space is at a premium.

• Overcurrent Protection: The module features integrated overcurrent protection, which helps to safeguard the module and the overall system from potential damage due to excessive currents.

• Under-Voltage Lockout: The under-voltage lockout (UVLO) feature ensures that the module operates correctly by preventing it from working under insufficient supply voltage conditions.

• Smart Shutdown: The smart shutdown capability provides a controlled response to fault conditions, enhancing the safety and durability of the application.


Applications

The STEVAL-IPM10B is suitable for a wide range of applications, including but not limited to:


• Washing machines

• Refrigerators

• Air conditioners

• Fans and blowers

• Water pumps


With its robust design and comprehensive feature set, the STEVAL-IPM10B is an ideal choice for designers looking to create efficient, reliable, and cost-effective motor control solutions.
