Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.2V
Current - Output 1.5A
Voltage - Input 2.5V ~ 5.5V
Regulator Topology Buck
Frequency - Switching 1.5MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part ST1S06
Other Names STEVALISA043V1,-497-6419,STEVAL-ISA043V1,497-6419
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8473.30.5100
Win Source Part Number 1284219-STEVAL-ISA043V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA043V1 CAD Model

Description

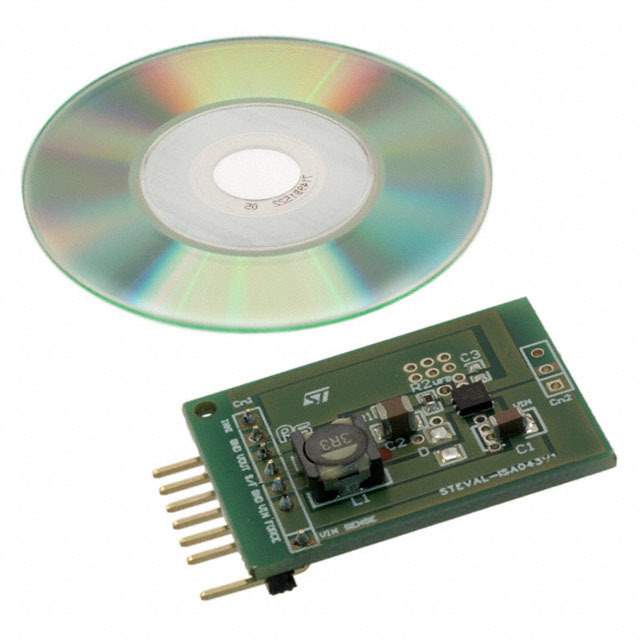

The STEVAL-ISA043V1 from STMicroelectronics is a highly efficient evaluation board designed for engineers and developers who require a reliable voltage regulation solution. This evaluation board is specifically tailored for testing the performance of the L7986A, a step-down switching regulator capable of delivering up to 3 A of current to the load.

Key Features

  • Onboard L7986A adjustable step-down switching regulator with a 3 A current capability.
  • Input voltage range from 4.5 V to 38 V, accommodating a wide variety of applications.
  • Adjustable output voltage from 0.8 V to VIN, ensuring versatility for different circuit requirements.
  • High efficiency, with a switching frequency up to 1 MHz.
  • Features overcurrent and thermal protection for improved safety and reliability.
  • Equipped with an EN (enable) pin, allowing the regulator to be turned on and off externally.
  • Comes with Power Good output for real-time feedback on the status of the voltage regulator.
  • RoHS compliant and designed with ECOPACK2 specifications for environmental sustainability.

Applications

The STEVAL-ISA043V1 is suitable for a variety of applications, including but not limited to:

  • Industrial control systems
  • Automotive applications
  • Consumer electronics
  • Telecommunication devices
  • Power management for complex digital systems such as FPGAs, DSPs, and microcontrollers

Design and Development Support

The board is designed to facilitate easy integration and testing, providing developers with a practical and time-saving solution for evaluating the L7986A regulator's features and performance. With its robust design and comprehensive feature set, the STEVAL-ISA043V1 is an indispensable tool for developing efficient power supply circuits.

For further information, datasheets, and technical support, visit the STMicroelectronics website.
