Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Main Purpose Special Purpose DC/DC, DDR Memory Supply
Outputs and Type 4, Non-Isolated
Voltage - Output 1.5V, 1.8V
Voltage - Input 4.5V ~ 28V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part PM6670
Other Names -497-8411,497-8411,STEVALISA051V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Win Source Part Number 1284269-STEVAL-ISA051V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA051V1 CAD Model

Description

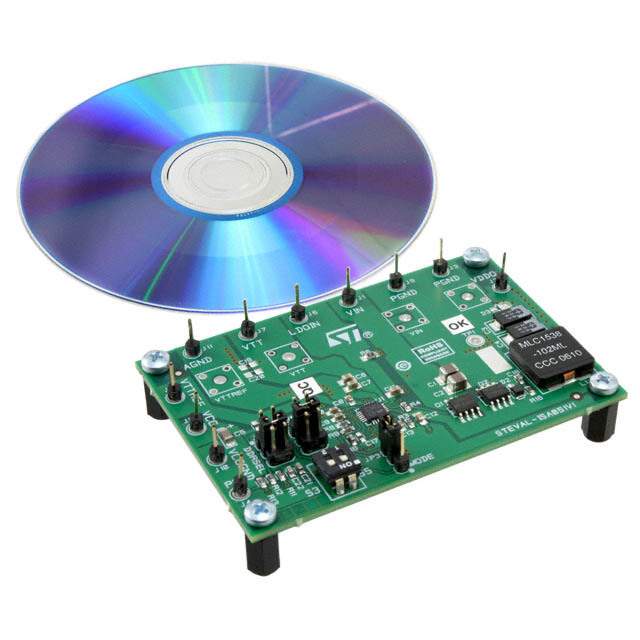

STEVAL-ISA051V1 - STMicroelectronics Evaluation Board

The STEVAL-ISA051V1 from STMicroelectronics is a highly efficient, compact, and versatile evaluation board designed for evaluating the performance of the L7986, a step-down switching regulator. This regulator is capable of delivering up to 3 A of continuous current to the load with excellent line and load regulation.

The evaluation board is tailored for a wide range of applications, particularly those requiring an efficient voltage conversion from a higher voltage to a lower voltage with minimal power loss. This makes it ideal for use in industrial, automotive, and consumer applications where power efficiency and thermal performance are critical.

The L7986 is a monolithic step-down regulator with a wide input voltage range from 4.5 V to 38 V, which makes the STEVAL-ISA051V1 suitable for a variety of input sources. The output voltage can be set from 0.8 V to VIN, providing flexibility for different application requirements. The high switching frequency of up to 1 MHz allows the use of small surface-mount components, thus reducing the PCB size and bill of materials.

The board features numerous protection features, including overcurrent protection, thermal shutdown, and overvoltage protection, ensuring the safety and longevity of both the board and the end application. Additionally, the evaluation board is equipped with jumpers and test points that facilitate easy measurement and adjustment of the circuit's parameters, making it a user-friendly tool for both beginners and experienced engineers.

With its robust design and comprehensive feature set, the STEVAL-ISA051V1 evaluation board is an excellent tool for developers looking to test the capabilities of the L7986 switching regulator and implement it into their own designs. It provides a reliable platform for quick prototyping and helps accelerate the development cycle, from initial concept to final product.
