Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr STMicroelectronics
Package Bulk
Product Status Obsolete
Main Purpose DC/DC, Step Down with LDO
Outputs and Type 2, Non-Isolated
Voltage - Output 1.5V, 0.6 ~ 3.3V
Current - Output 10A, 2A
Voltage - Input 4.5V ~ 28V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part PM6675
Other Names 1026-STEVAL-ISA052V1,497-8426,-497-8426
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284226-STEVAL-ISA052V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ISA052V1 CAD Model

Description

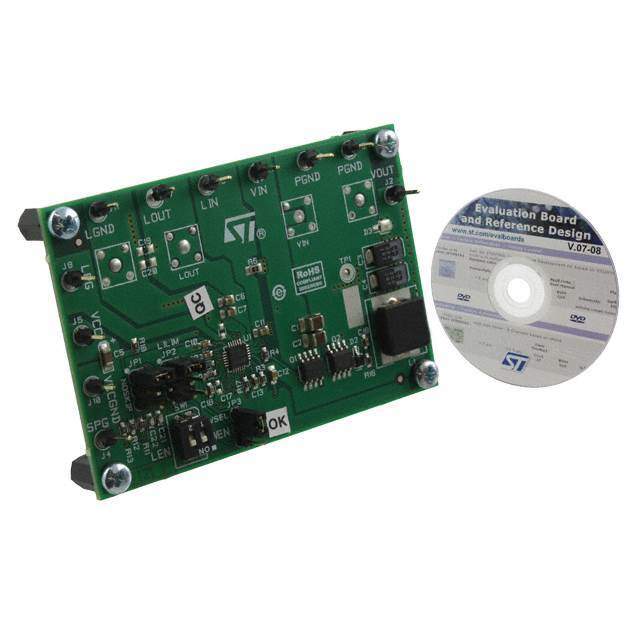

Overview of STEVAL-ISA052V1

The STEVAL-ISA052V1 from STMicroelectronics is a highly efficient, product evaluation board designed primarily for the evaluation of the VIPER06XS, a low-power offline switched-mode power supply (SMPS) primary switcher. This evaluation board is an excellent tool for engineers and designers to explore the features and performance of the VIPER06XS in a flyback converter topology.

Key Features

  • Integrated VIPER06XS high-voltage converter with 800 V avalanche-rugged power section
  • Fixed 60 kHz switching frequency with frequency jittering for lower EMI
  • Embedded error amplifier and protections for enhanced safety and reliability
  • Standby power consumption below 30 mW at 265 VAC
  • Output overvoltage protection with auto-restart
  • Brown-out protection and input overvoltage lockout with hysteresis

Applications

The STEVAL-ISA052V1 is versatile and can be used in a variety of applications where efficient power conversion is required. It is particularly suitable for:

  • Low-power AC/DC adapters
  • Standby power supplies for white goods and home appliances
  • Auxiliary power supplies for industrial systems

Performance and Efficiency

The STEVAL-ISA052V1 showcases the performance of the VIPER06XS in a real-world scenario. It is designed to operate over a wide input voltage range, providing a stable and regulated output voltage with high efficiency and low standby power consumption. The board is equipped with a number of protections to ensure safe operation under various conditions, making it a robust solution for power supply design.

Design and Ease of Use

With a compact design, the STEVAL-ISA052V1 evaluation board is easy to integrate into existing systems for testing and evaluation. The board comes with a complete set of documentation, including schematics, bill of materials, and application notes, to facilitate a quick and in-depth understanding of the VIPER06XS capabilities.
