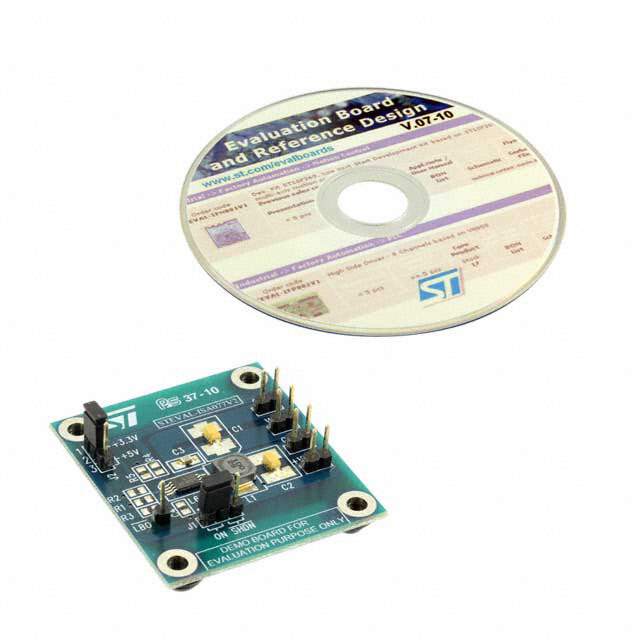

STEVAL-ISA077V2 - STMicroelectronics High-Efficiency Switching Regulator Evaluation Board

The STEVAL-ISA077V2 from STMicroelectronics is an evaluation board designed for engineers and professionals looking to test and assess the performance of a high-efficiency switching regulator. This evaluation platform is centered around the L7987, a robust and versatile step-down switching regulator capable of delivering up to 3A of continuous current to the load.

The L7987 is a monolithic synchronous buck regulator with a wide input voltage range from 4V to 38V, which makes the STEVAL-ISA077V2 suitable for a variety of applications, including industrial, automotive, and consumer electronics that require efficient voltage regulation. The adjustable output voltage, which can be set from 0.8V to VIN, provides flexibility for powering different circuits and systems.

One of the key features of the STEVAL-ISA077V2 is its high efficiency, which is achieved through an advanced design that includes a low R<sub>DS(on) high-side switch and synchronous rectification. This helps to minimize power losses and thus enhance the overall performance of the system it powers. Additionally, the board includes a range of protection features such as overcurrent protection, thermal shutdown, and a soft-start function to ensure safe operation under various conditions.

The compact size of the evaluation board, along with its pre-installed header connectors, makes it easy to integrate into existing setups for quick testing and prototyping. The board is also equipped with test points that provide convenient access for measuring the electrical parameters of the L7987 regulator.

Overall, the STEVAL-ISA077V2 is an excellent tool for developers and hobbyists alike who need a reliable and efficient solution for voltage regulation in their projects. With its robust features and flexible design, this evaluation board from STMicroelectronics is an invaluable asset for designing state-of-the-art electronic systems.
