Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Series MEMS
Package Box
Product Status Obsolete
Sensor Type Accelerometer, 3 Axis
Sensing Range ±3.5g
Interface Analog
Sensitivity 0.100 x Vdd = V/g
Voltage - Supply 2.7V ~ 3.3V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part LIS344AL
Other Names -497-8201,497-8201
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283665-STEVAL-MKI017V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI017V1 CAD Model

Description

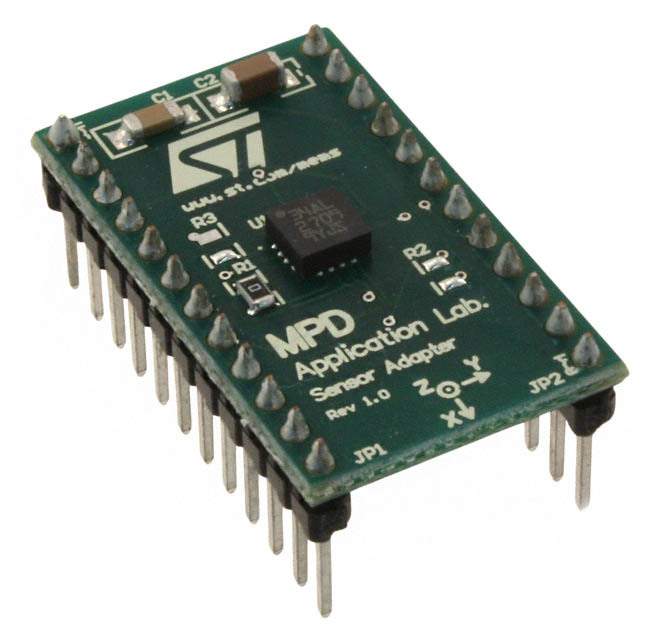

Introducing the STEVAL-MKI017V1 Motion Sensor Module

The STEVAL-MKI017V1 is a cutting-edge motion sensor module designed by STMicroelectronics, a leader in the semiconductor industry. This compact and versatile evaluation board is specifically tailored for the LSM303DLH, a system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.

High Precision and Advanced Features

The LSM303DLH sensors integrated into the STEVAL-MKI017V1 module ensure high-resolution detection of acceleration and magnetic field strength, making it an ideal choice for a wide range of applications, including but not limited to personal navigation, gaming, and vibration monitoring. The module's high precision sensors boast impressive accuracy and reliability, providing developers and engineers with the data needed to create sophisticated motion detection systems.

Flexible and User-Friendly Interface

The STEVAL-MKI017V1 module is designed with user convenience in mind. It offers an I2C serial interface for communication, allowing for easy integration with a variety of microcontroller units (MCUs). Additionally, the board comes with a DIL 24-pin socket, ensuring compatibility with STMicroelectronics' STEVAL-MKI109V2 motherboard, which is designed for quick evaluation and development with a wide range of MEMS devices.

Robust Design and Compatibility

Encased in a robust package, the STEVAL-MKI017V1 is built to withstand the rigors of development and testing. Its design ensures that it can be used in various environments, ranging from laboratory settings to field testing. The module's compatibility with other STMicroelectronics evaluation tools means that it can be part of a comprehensive development ecosystem, streamlining the process of bringing new products to market.

Key Specifications

  • 3D accelerometer with a linear acceleration full scale of ±2g/±4g/±8g/±16g
  • 3D magnetometer with a magnetic field dynamic range of ±1.3/±1.9/±2.5/±4.0/±4.7/±5.6/±8.1 gauss
  • I2C serial interface for easy integration
  • Compatible with STEVAL-MKI109V2 motherboard for advanced development
  • Operating temperature range: -40°C to +85°C

Whether for prototyping or for integration into final products, the STEVAL-MKI017V1 from STMicroelectronics offers a sophisticated solution for motion sensing needs.
