Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Package Bulk
Sensor Type Accelerometer, 3 Axis
Sensing Range ±2g, 4g, 8g, 16g
Interface I2C, SPI
Voltage - Supply 1.62V ~ 1.98V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part LIS2DS12
Base Product Number STEVAL
Other Names 497-16984
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1283726-STEVAL-MKI174V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI174V1 CAD Model

Description

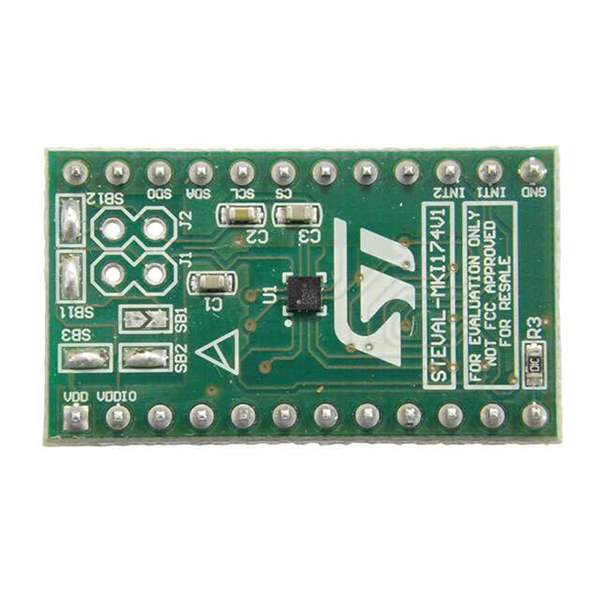

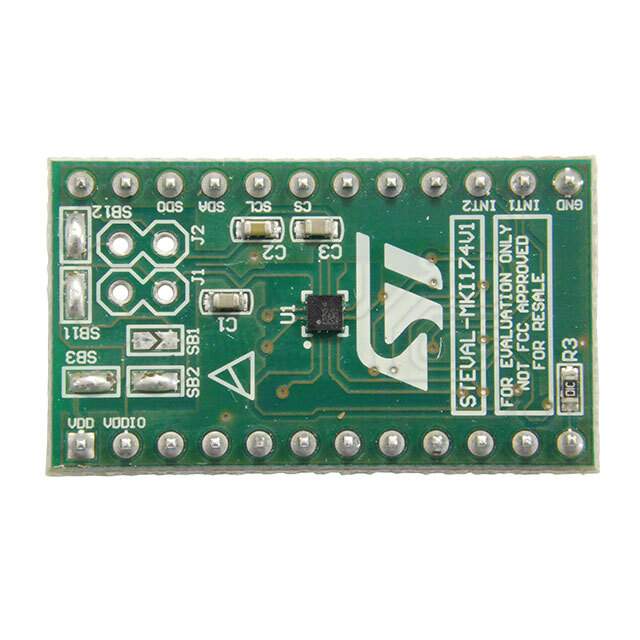

Introducing the STEVAL-MKI174V1 Motion MEMS and Environmental Sensor Evaluation Board

The STEVAL-MKI174V1 is a comprehensive evaluation platform brought to you by STMicroelectronics, designed to provide a seamless user experience when testing and prototyping with state-of-the-art motion MEMS and environmental sensors. This innovative board is perfect for developers and engineers looking to explore the capabilities of advanced sensor technology in a variety of applications, ranging from wearable devices to industrial monitoring systems.

Key Features

  • Integrated Sensors: The board includes a selection of ST's latest motion MEMS and environmental sensors, providing a wide array of functionalities such as acceleration, magnetic field detection, gyroscope, pressure, humidity, and temperature measurement.
  • LSM6DSM iNEMO Inertial Module: This high-precision 3D accelerometer and 3D gyroscope is designed for low-power applications and offers advanced features like smart embedded functions and a high level of performance.
  • LIS2MDL Magnetometer: The ultra-low-power 3D magnetometer ensures accurate magnetic field detection, which is crucial for applications like compassing and navigation.
  • LPS22HB MEMS Pressure Sensor: The board includes this high-accuracy barometer for precise atmospheric pressure measurement, suitable for altimetry and weather monitoring applications.
  • HTS221 Humidity and Temperature Sensor: With this integrated sensor, users can measure relative humidity and temperature with high precision, enhancing the capabilities of environmental monitoring solutions.

Flexible and User-Friendly Design

The STEVAL-MKI174V1 evaluation board is designed with flexibility in mind. It features a DIL 24-pin socket which makes it compatible with the standard ST adapter boards for a quick and easy connection to an STM32 Nucleo development board. Additionally, it supports a wide range of supply voltages, allowing for integration with various host systems.

Software Support

STMicroelectronics provides a comprehensive software development ecosystem, including the Unico GUI that allows for easy configuration of sensor parameters, data logging, and analysis. This, along with a full set of software development kits (SDKs) and APIs, ensures a smooth and efficient development process.

Whether you're developing the next generation of smart devices or conducting advanced research, the STEVAL-MKI174V1 evaluation board is the perfect tool to harness the capabilities of STMicroelectronics sensors and bring your projects to life.
