Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr STMicroelectronics
Package Bulk
Sensor Type Pressure
Sensing Range 260 ~ 1260 hPa
Interface I2C, Serial, SPI
Voltage - Supply 1.7V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part LPS33W
Base Product Number STEVAL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names -1138-STEVAL-MKI205V1,497-19451
Standard Package 1
Win Source Part Number 1025502-STEVAL-MKI205V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI205V1 CAD Model

Description

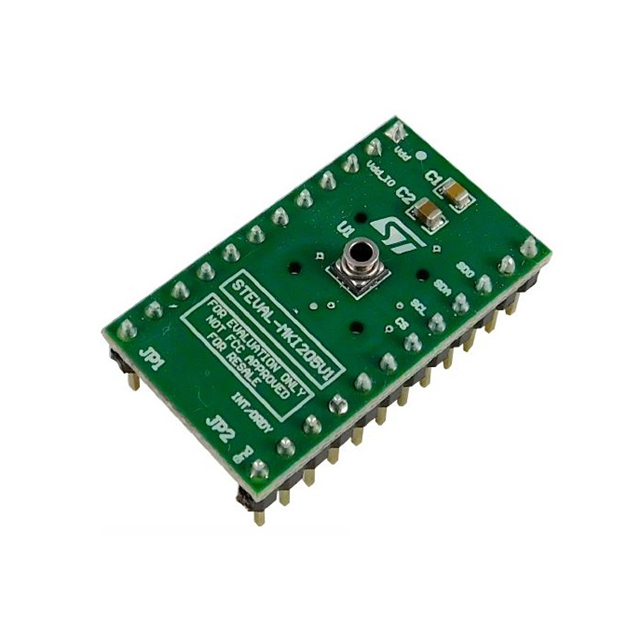

STEVAL-MKI205V1 - An Innovative Motion Sensor Board from STMicroelectronics

The STEVAL-MKI205V1 is a state-of-the-art motion sensor board designed by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology. This compact, yet powerful, evaluation board is specifically tailored for the LSM6DSRX iNEMO inertial module, which is a high-performance system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope.

The STEVAL-MKI205V1 is designed to make it easy for engineers and developers to prototype and test the capabilities of the LSM6DSRX module. The board connects via a user-friendly DIL 24-pin socket, ensuring that it can be quickly integrated into a test environment or used in conjunction with other evaluation boards within the ST ecosystem.

The LSM6DSRX at the heart of the STEVAL-MKI205V1 offers advanced features such as a finite state machine, machine learning core, and advanced digital functions, which enable smart sensor processing. This allows for the reduction of the workload on the host controller, thereby enhancing system efficiency. The sensor can provide high-resolution motion detection, making it an ideal choice for a wide range of applications, including gaming and virtual reality, wearable sensors, drone stabilization, and smartphone navigation.

The board is equipped with robust software support, providing developers with the STSW-MKI109W firmware package, which includes a comprehensive set of software tools to fully exploit the capabilities of the LSM6DSRX. This includes a dedicated software development kit (SDK) with example applications and a detailed library of functions to interface with the sensor.

The STEVAL-MKI205V1 evaluation board is a testament to STMicroelectronics' commitment to providing innovative solutions that empower the development of next-generation motion-sensing applications. With its high-performance capabilities, versatile features, and ease of integration, the STEVAL-MKI205V1 is an excellent tool for both rapid prototyping and in-depth evaluation of the LSM6DSRX sensor module.
