The STF24N60M2 is a state-of-the-art N-channel Power MOSFET produced by STMicroelectronics, a leader in semiconductor technology. This MOSFET is part of the MDmesh™ M2 series which is renowned for its excellent energy efficiency and high performance in a wide range of applications.
Key Features
- Voltage Rating: The STF24N60M2 boasts a high drain-source voltage (V<sub>DS) of 600V, making it suitable for high voltage applications.
- Current Capability: With a continuous drain current (I<sub>D) of 18A, this MOSFET can handle significant power for a variety of electronic designs.
- RDS(on): It has a low on-resistance (RDS(on)) of 0.165Ω, which contributes to its high efficiency by minimizing conduction losses.
- Fast Switching Speed: The device's fast switching speed enhances performance in high-frequency circuits and helps reduce switching losses.
- 100% Avalanche Tested: Ensuring reliability, each unit is tested for avalanche ruggedness, which is critical for applications subject to high voltage transients.
Applications
The STF24N60M2 is versatile and can be used in a variety of applications, including:
- Switch Mode Power Supplies (SMPS)
- LED Lighting
- High-Efficiency DC/DC Converters
- Welding Equipment
- Uninterruptible Power Supplies (UPS)
- Motor Control
Package and Quality

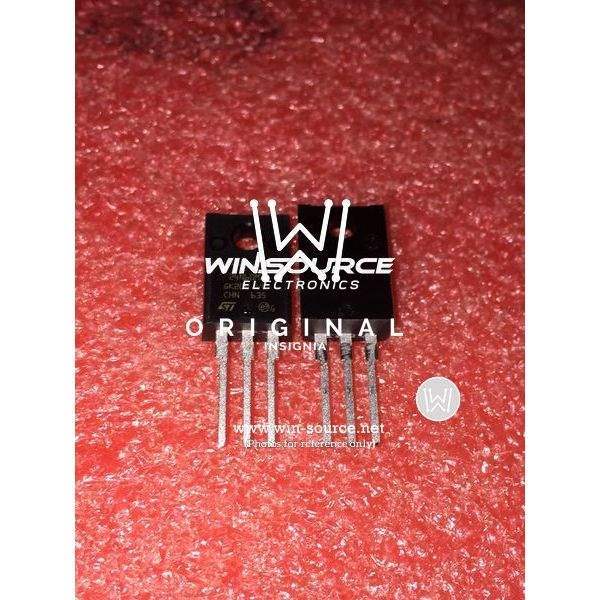

The STF24N60M2 is available in a TO-220FP package, which is designed for optimal heat dissipation and space efficiency. The package ensures that the MOSFET can operate reliably even under high power and temperature conditions.
Environmental and Quality Standards
Committed to environmental responsibility, STMicroelectronics ensures that the STF24N60M2 complies with various international standards, including RoHS and Halogen-free requirements. Additionally, the product meets the stringent quality standards expected from a leading semiconductor manufacturer, guaranteeing performance and durability for your electronic projects.
