STGIPQ3H60T-HL - An Advanced SLLIMM-nano Intelligent Power Module from STMicroelectronics

The STGIPQ3H60T-HL is a state-of-the-art intelligent power module (IPM) from STMicroelectronics, designed to deliver high efficiency and reliability for a wide range of motor drive applications. This compact and robust module is part of the SLLIMM™-nano (Small Low-Loss Intelligent Molded Module) family, which is known for its exceptional performance in a space-saving footprint.

At the heart of the STGIPQ3H60T-HL is a three-phase inverter bridge configured with advanced IGBTs and fast recovery diodes. These components are optimized to provide low conduction and switching losses, which translates to improved overall system efficiency. The module is rated for a breakdown voltage of 600V and a continuous collector current of up to 3A, making it suitable for a variety of applications, including home appliances, air conditioners, and industrial motor drives.

The IPM integrates a variety of features that facilitate ease of use and enhance system protection. These include under-voltage lockout (UVLO) for both high and low side channels, over-current shutdown, and temperature sensing functionality. The built-in over-temperature protection ensures that the device operates within safe temperature limits, thereby enhancing the longevity and reliability of the module.

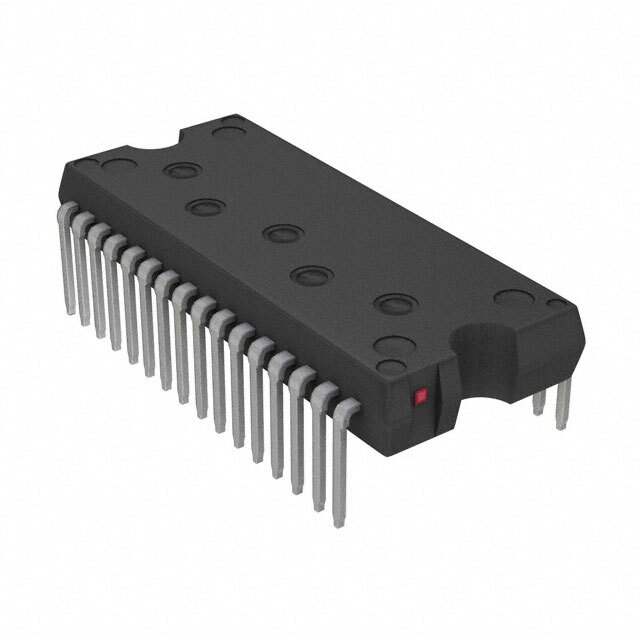

Designed with a focus on practicality, the STGIPQ3H60T-HL comes in a highly insulated package that provides excellent thermal performance and simplifies the PCB design process. The module's footprint is compatible with a simple and straightforward surface mount process, which reduces manufacturing time and costs.

For engineers looking to streamline the design process, STMicroelectronics offers extensive technical support, including reference designs and application notes. The STGIPQ3H60T-HL is also supported by a suite of simulation tools that can help predict system performance and accelerate the development cycle.

With its combination of performance, integration, and ease of use, the STGIPQ3H60T-HL from STMicroelectronics represents an ideal solution for designers seeking to enhance the efficiency and reliability of their motor drive systems without compromising on space or cost.
