STH180N10F3-6 MOSFET Overview

The STH180N10F3-6 is a state-of-the-art N-channel Power MOSFET designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This device is part of ST's STripFET™ F3 series, which is renowned for its low on-state resistance and high switching performance. The STH180N10F3-6 is particularly well-suited for high-efficiency power conversion applications in a wide range of electronic systems.

Key Features

• Low On-Resistance (R<sub>DS(on)): The STH180N10F3-6 boasts an extremely low on-resistance of just 8.5 mΩ (max), which significantly reduces conduction losses and improves overall efficiency.
• High Drain Current: It is capable of supporting a continuous drain current (I<sub>D) of up to 180 A, making it suitable for high-power applications.
• 100% Avalanche Tested: This MOSFET is guaranteed to handle high stress in avalanche and commutation modes, ensuring reliability and robustness in tough conditions.
• Low Gate Charge (Q<sub>g): With a low gate charge, the STH180N10F3-6 enables faster switching, which is critical for reducing switching losses in power conversion circuits.
• High Threshold Voltage (V<sub>th): The device has a threshold voltage of 4.5 V, which helps to prevent unintentional turn-on of the MOSFET due to noise or voltage fluctuations in the system.

Applications

The STH180N10F3-6 is designed for a variety of high-efficiency applications, including:

• Synchronous rectification for Switch Mode Power Supplies (SMPS)
• DC/DC converters
• High current motor drives
• Automotive applications
• Power management solutions

Package and Environmental Compliance

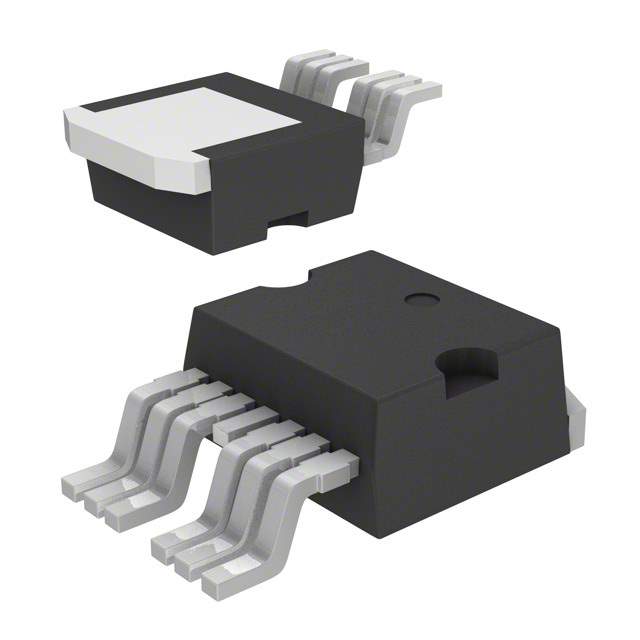

The STH180N10F3-6 is housed in an H²PAK-6 package, which offers excellent thermal performance and is suitable for compact designs. Additionally, the device complies with the RoHS directive, which restricts the use of certain hazardous substances in electronic equipment, making it an environmentally friendly choice for your power management needs.

Overall, the STH180N10F3-6 from STMicroelectronics is a high-performance, reliable, and energy-efficient solution for designers looking to optimize their power conversion systems.
