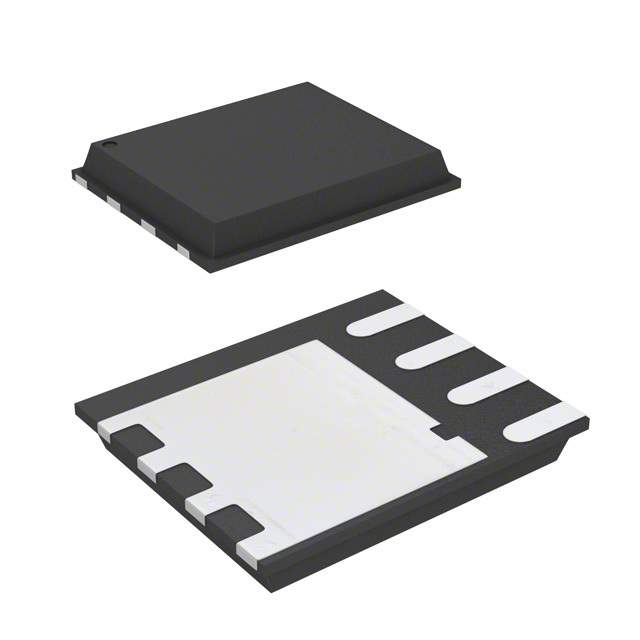

The STL75N3LLZH5 is a high-performance, low-voltage, N-channel Power MOSFET designed and manufactured by STMicroelectronics. This advanced Power MOSFET is part of the STripFET H5 series, which is known for its low on-resistance and low gate charge, making it an excellent choice for high-efficiency power management applications.

Key Features

• Low Threshold Voltage (V<sub>GS(th)): Ensures low voltage operation, making it suitable for battery-powered applications and low voltage electronics.
• High Continuous Drain Current (I<sub>D): Supports high current applications, providing a continuous drain current that meets the requirements of a wide range of power-intensive devices.
• Low On-Resistance (R<sub>DS(on)): Reduces power loss and improves efficiency, which is critical for power management in modern electronic devices.
• 100% Avalanche Tested: Guarantees robustness and reliability, ensuring the MOSFET can handle stress under repetitive avalanche conditions.
• Low Gate Charge (Q<sub>g): Minimizes switching losses, contributing to the overall efficiency of the power management system.

Applications

With its excellent performance characteristics, the STL75N3LLZH5 is ideal for a variety of applications, including but not limited to:

• Switching regulators
• DC/DC converters
• Motor control
• Power management in portable and mobile devices
• Load switches

Environmental and Quality Certifications

STMicroelectronics is committed to environmental stewardship and product quality. The STL75N3LLZH5 is designed to meet various industry standards and certifications, ensuring reliability and performance in demanding environmental conditions.

Conclusion

The STL75N3LLZH5 N-channel Power MOSFET by STMicroelectronics is a testament to the company's dedication to providing advanced power solutions. Its low on-resistance, high current capacity, and efficient switching characteristics make it a top choice for engineers and designers looking to optimize their power management systems.
