Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 5
Voltage - Supply (Minimum) 2.3V
Voltage - Supply (Maximum) 5.5V
Voltage - Output 8.8V
Current - Output / Channel 125mA
Frequency 2.5MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C ~ 85°C
Mounting Style SMD

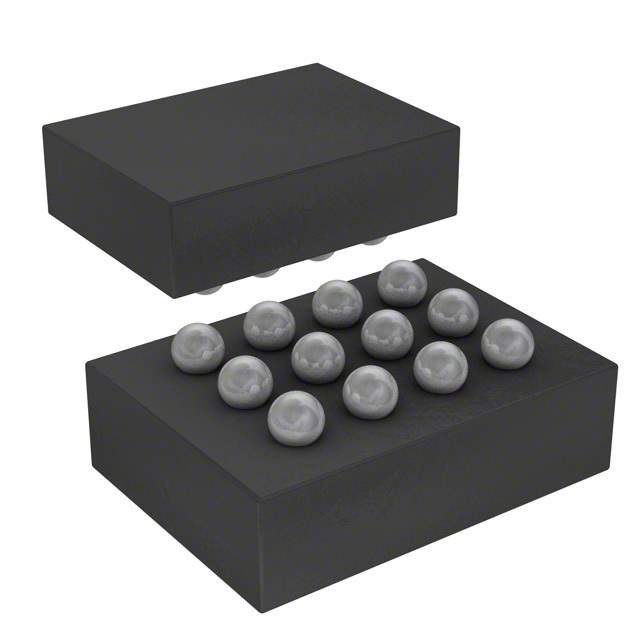

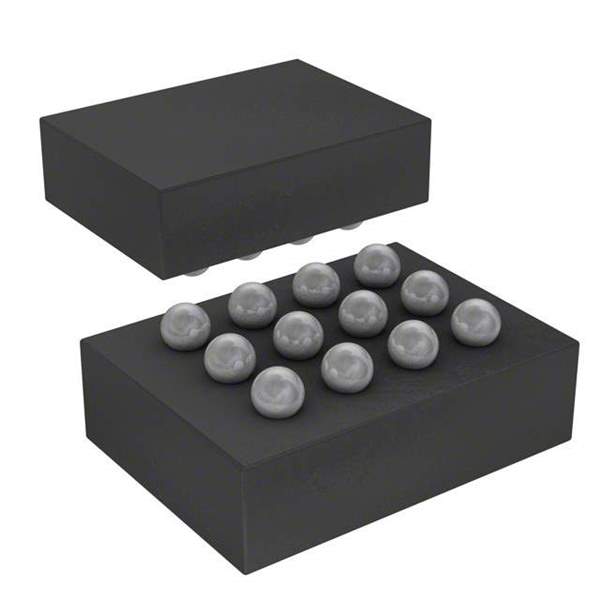

Manufacturer Package 12-UFBGA, FCBGA
Supplier Device Package 12-FlipChip (1.4x1.8)
Family Part Number STLED25
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1261352-STLED25JR
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian STLED25JR CAD Model

Description

Introducing the STLED25JR from STMicroelectronics

The STLED25JR is a cutting-edge LED driver IC crafted by the renowned semiconductor manufacturer, STMicroelectronics. This innovative component is specifically designed to deliver a seamless and efficient driving solution for LED arrays and backlighting systems. With its compact size and high-performance capabilities, the STLED25JR is an ideal choice for a wide range of applications, from consumer electronics to automotive lighting.

Key Features

  • Drive Capability: The STLED25JR can drive up to 25 LEDs in series, providing consistent brightness and enhancing the overall visual experience.
  • Current Regulation: It features precise internal current regulation, which ensures stable light output and prolongs the life of the LEDs.
  • Flexibility: The device is designed to be flexible, supporting both analog and pulse-width modulation (PWM) dimming methods, allowing for a wide range of brightness levels and dynamic lighting effects.
  • Energy Efficiency: With its high efficiency and low operating voltage, the STLED25JR helps reduce power consumption, making it a suitable choice for battery-powered applications.
  • Thermal Protection: It also includes thermal shutdown protection, safeguarding the IC and the LED array from potential overheating.

Applications

The versatility of the STLED25JR makes it an excellent choice for various applications that require reliable and efficient LED driving. These include:

  • LCD backlighting in consumer electronics such as smartphones, tablets, and laptops
  • Automotive interior lighting, including dashboard, infotainment, and accent lighting
  • General-purpose LED lighting and signage
  • Portable devices and handheld instruments

Technical Specifications

The STLED25JR is built with robust technical specifications that ensure its reliable performance in diverse environments:

  • Operating Voltage Range: 3.3V to 5.5V
  • Output Current: Up to 150mA
  • Dimming Control: Analog and PWM
  • Protection Features: Overcurrent, Short-Circuit, and Thermal Shutdown

In summary, the STLED25JR from STMicroelectronics is a powerful, efficient, and versatile LED driver that is suitable for a myriad of modern lighting applications. Its integration into your designs can lead to enhanced performance, energy savings, and a superior user experience.
