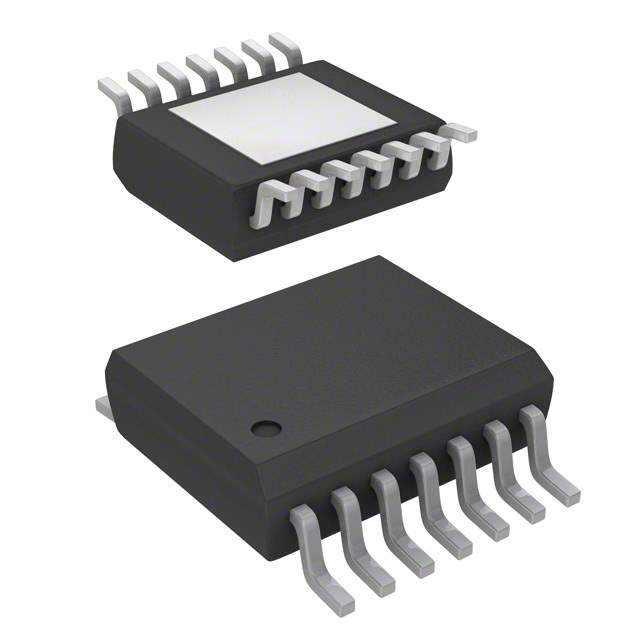

The TLD2326EL is a monolithic, protected high-side power switch from Infineon Technologies, designed for automotive and industrial applications. This smart high-side power switch integrates protection features, diagnosis, and enhanced control capabilities, ensuring robust and reliable operation in demanding environments. It is characterized by its low quiescent current and optimized switching performance.

Applications:

• Automotive Lighting: Used to control headlights, taillights, and other exterior lighting systems.
• Automotive Body Control: Employed for controlling door locks, window lifts, and seat adjustments.
• Industrial Automation: Utilized for switching inductive loads such as relays, solenoids, and valves.
• Power Distribution: Integral in power distribution systems for controlling power to various loads.
• Motor Control: Used to drive small DC motors in automotive and industrial applications.

Features:

• Protected High-Side Switch: Provides overvoltage, overcurrent, and overtemperature protection.
• Diagnosis Feedback: Offers diagnostic information on load status and fault conditions.
• Low Quiescent Current: Minimizes power consumption in standby mode.
• Short Circuit Protection: Protects the device and load from short circuit conditions.
• Open Load Detection: Detects open load conditions and provides feedback.

Benefits:

• Enhanced System Reliability: Integrated protection features ensure robust and reliable operation.
• Reduced Power Consumption: Low quiescent current minimizes standby power consumption.
• Simplified Design: Integrated features reduce the need for external components.
• Improved Safety: Diagnostic feedback provides valuable information for system monitoring.
• Robust Performance: Designed for reliable operation in harsh automotive and industrial environments.

Additional Details:

The TLD2326EL typically features a supply voltage range of 5V to 34V and a maximum current rating suitable for its intended applications. The device is available in a PG-DSO-8 package. Detailed electrical characteristics, including switching times, protection thresholds, and diagnostic features, can be found in the manufacturer's datasheet. It is designed to meet automotive quality standards and is AEC-Q100 qualified.
